Headliner - Ct-Telephony-Microphone-TLA - Remove And Replace: Remove

  1. Remove the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
  2. Remove the LH upper A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
  3. Remove the LH sun visor. See SUN VISORS - SUN VISOR ASSEMBLY, LH - REMOVE AND REPLACE .
  4. Remove the lower camera cover. See REARVIEW MIRROR - REAR VIEW MIRRROR, CAM LOWER COVER - REMOVE AND REPLACE .
  5. Remove the rear view mirror. See REARVIEW MIRROR - REAR VIEW MIRROR, ASSEMBLY - REMOVE AND REPLACE .
  6. Repeat step  1 through step  3 for the RH side of the vehicle.
  7. Remove the LH 2nd row seat side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  8. Remove the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  9. Remove the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  10. Remove the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  11. Remove the LH middle B-pillar trim. See TRIM - B-PILLAR - MIDDLE - LH - REMOVE AND REPLACE .
  12. Remove the LH upper B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
  13. Repeat step  7 and step  9 through step  12 for the RH side of the vehicle.

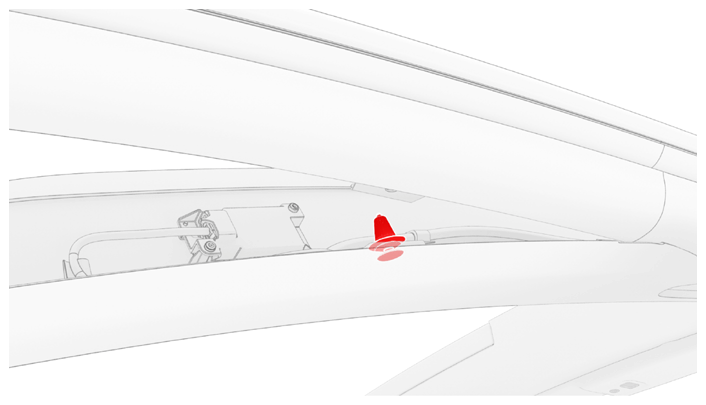

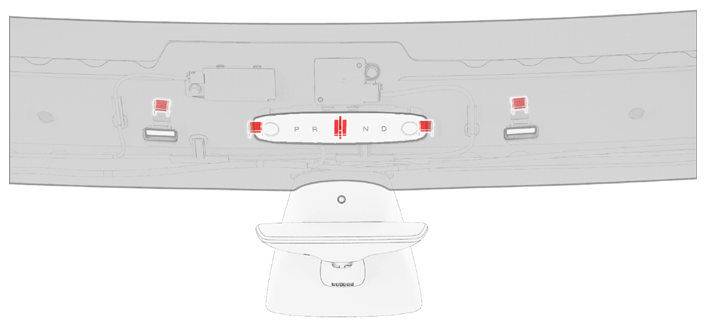

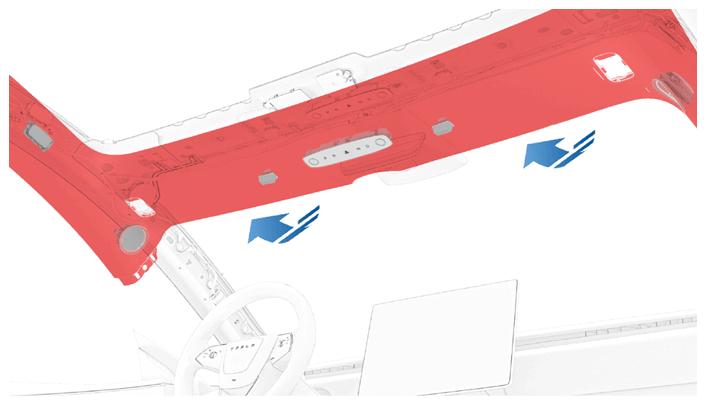

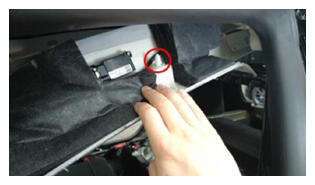

  14. Release the clips (x6) and locator pin that attach the front of the headliner to the vehicle.
    NOTE: Take care not to bend the headliner when releasing the clips.
    NOTE: If the metal clips are damaged during releasing, replace them with new metal clips.
    G16590566Courtesy of TESLA, INC.
    G16590567Courtesy of TESLA, INC.
    G16590568Courtesy of TESLA, INC.
    G16590569Courtesy of TESLA, INC.

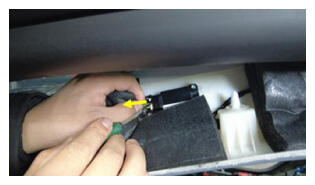

  15. Disconnect the electrical connector from the LH front headliner microphone.
    G16590570Courtesy of TESLA, INC.

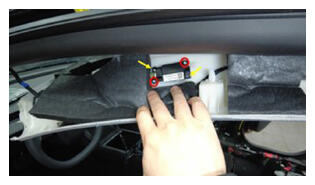

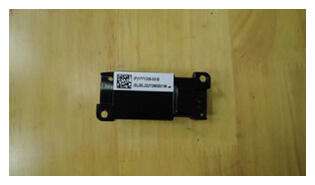

  16. Remove the bolts (x2) that attach the LH front headliner microphone to the headliner, and then remove the microphone from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    • Digital Torque Screwdriver 0.10 N.m - 2.0 N.m
    • Ratchet/torque wrench
    G16590571Courtesy of TESLA, INC.
    G16590572Courtesy of TESLA, INC.
