Headliner - Ct-Telephony-Microphone-TLA - Remove And Replace: Install

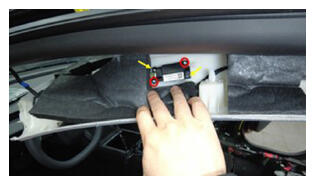

- Position the LH front headliner microphone into the headliner, and then install the bolts (x2) that attach the microphone to the headliner.
0.3 N.m (3 lbs-in)
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
- Digital Torque Screwdriver 0.10 N.m - 2.0 N.m
- Ratchet/torque wrench

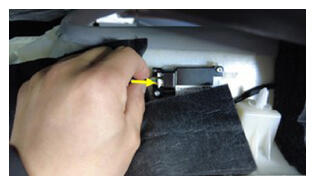

- Connect the electrical connector to the LH front headliner microphone.

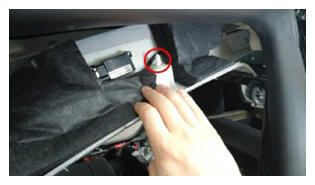

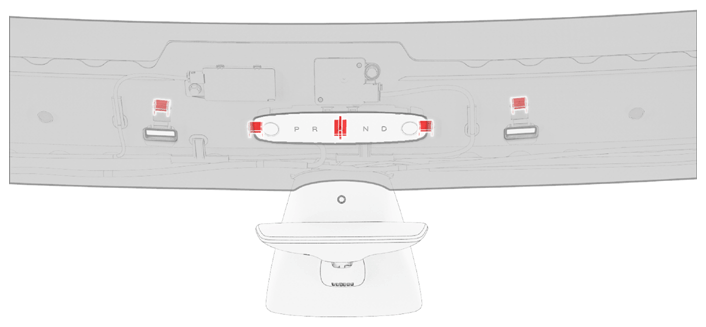

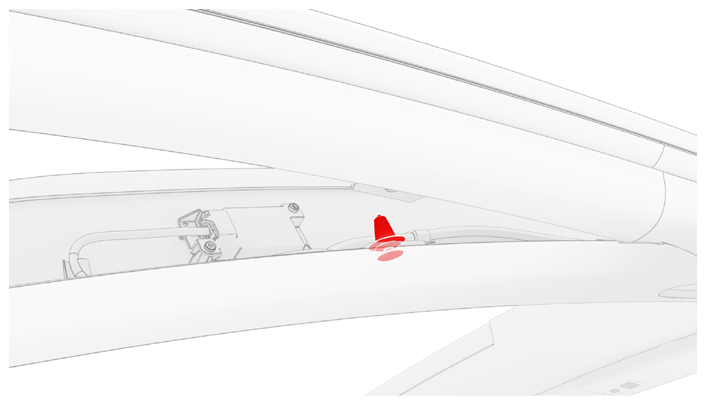

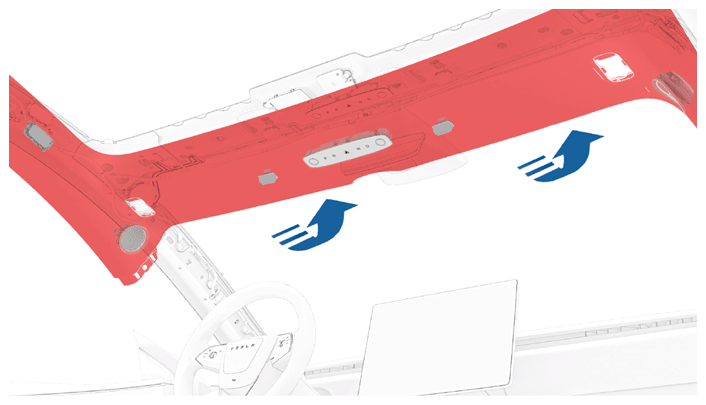

- Align the locating pin of the front of the headliner to the slot, and then install the clips (x6) that attach the front of the headliner to vehicle.NOTE: Make sure that the door seal correctly overlaps the LH upper B-pillar trim.
- Install the rear view mirror. See REARVIEW MIRROR - REAR VIEW MIRROR, ASSEMBLY - REMOVE AND REPLACE .
- Install the lower camera cover. See REARVIEW MIRROR - REAR VIEW MIRRROR, CAM LOWER COVER - REMOVE AND REPLACE .
- Install the LH upper A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
- Install the LH sun visor. See SUN VISORS - SUN VISOR ASSEMBLY, LH - REMOVE AND REPLACE .
- Repeat step 6 and step 7 for the RH side of the vehicle.
- Install the LH upper B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
- Install the LH middle B-pillar trim. See TRIM - B-PILLAR - MIDDLE - LH - REMOVE AND REPLACE .
- Install the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
- Install the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
- Install the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
- Repeat step 9 through step 13 for the RH side of the vehicle.
- Install the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
- Install the 2nd row LH and RH seat side bolsters. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
