Headliner - Coat Hook Assembly LH - Remove And Replace: Remove

  1. Lower the rear headliner. See HEADLINER - HEADLINER ASSEMBLY - REMOVE AND REPLACE .

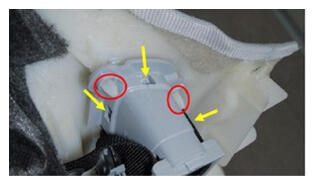

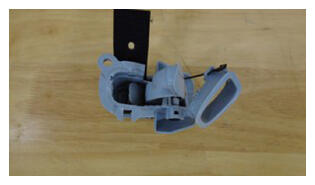

  2. Release the clips that attach the bezel to the LH rear coat hook, and then remove the coat hook from the headliner.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16590562Courtesy of TESLA, INC.
    G16590563Courtesy of TESLA, INC.
