Trunk Carpet And Side Finishers - Trunk Tub Assembly - Remove And Replace: Remove

  1. Remove the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
  2. Remove the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
  3. Remove the LH and RH load floor brackets. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .

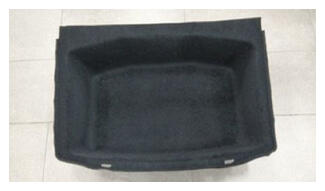

  4. Remove the rear trunk tub.
    G16590690Courtesy of TESLA, INC.
