Trunk Carpet And Side Finishers - Trunk Carpet Assembly - Remove And Replace: Remove

  1. Remove the LH and RH 2nd row seat side bolsters. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  2. Remove the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  3. Remove the LH 2nd row seat back. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEATBACK - LH - REMOVE AND REPLACE .
  4. Remove the RH 2nd row seat back. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEATBACK - RH - REMOVE AND REPLACE .
  5. Remove the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
  6. Remove the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
  7. Remove the LH and RH load floor brackets. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .
  8. Remove the rear trunk tub. See TRUNK CARPET AND SIDE FINISHERS - TRUNK TUB ASSEMBLY - REMOVE AND REPLACE .

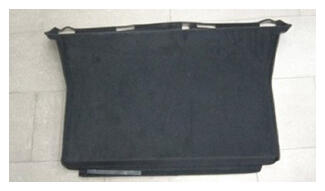

  9. Remove the rear carpet.
    G16590680Courtesy of TESLA, INC.
