Wiper Blades (Adjust): Adjustment

  1. On the touchscreen, tap Controls > Service > Wiper Service Mode  to enable Wiper Service Mode.
  2. Clean the wiper blades and the windshield thoroughly with isopropyl alcohol wipes, or equivalent.
  3. Press and hold the wiper button to spray the windshield with the washer jets.
    NOTE:
    • The drive rail must be on.
    • The doors may need to be closed depending on regions.
  4. Cycle wiper blades in high speed, and then inspect the cleaning pattern of the wiper blades:
    • If no streaking nor chattering of the windshield is present, discontinue this procedure.
    • If streaking or chattering of the windshield is present, continue to the next step.
  5. Remove the LH wiper blade. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WIPERS AND MOTOR - WIPER BLADES - PAIR - REMOVE AND REPLACE .
  6. Loosen the plate screw of the wiper adjustment tool, so that the measurement plate rotates freely.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.

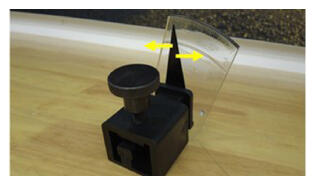

    G16596457Courtesy of TESLA, INC.
  7. Loosen the thumbscrew on the tool, and slide the tool onto the end of the LH wiper arm.

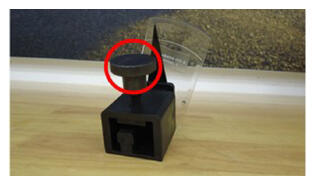

    G16596458Courtesy of TESLA, INC.
  8. Tighten the thumbscrew and make sure that both plastic points are resting on the windshield.

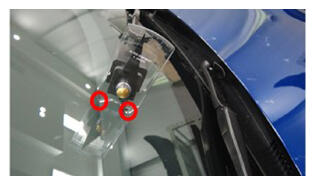

    G16596459Courtesy of TESLA, INC.
  9. Check the wiper arm angle, and use a 24 mm wrench to rotate the tool as necessary to set the correct angle. Adjust the wiper arm angle to -4 (+/- 0.5).

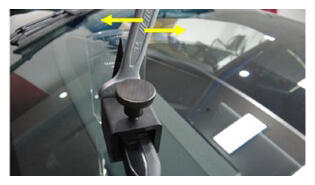

    G16596460Courtesy of TESLA, INC.
  10. Remove the adjustment tool from the LH wiper arm.
  11. Install the LH wiper blade. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WIPERS AND MOTOR - WIPER BLADES - PAIR - REMOVE AND REPLACE .
  12. Repeat step  5 to step  11 for the RH wiper arm.
  13. Using the touchscreen, remove the vehicle from Wiper Service Mode.
  14. Spray the windshield with the washer jets and verify operation. If streaking or chattering still persists, replace the wiper blades and repeat this procedure.
