RHD Instrument Panel - Instrument Panel - Dash Support Frame - Cross Car Beam Assembly (RR) - Remove And Replace: Notes

Last modified: 01/12/2023 09:27:02

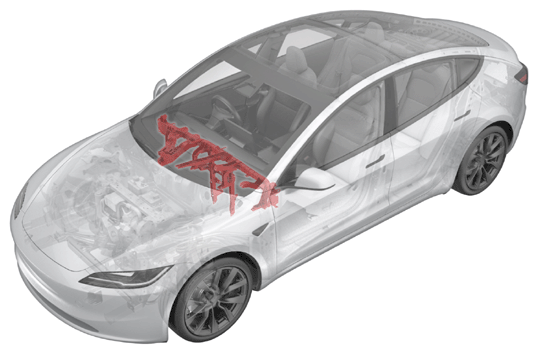

Fig 1: Cross Car Beam (RHD) Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY (REMOVE AND INSTALL)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Patch bolts (x2) that secure the instrument panel carrier to the cross car beam near the passenger airbag	8 N.m (5.9 lbs-ft)	Cordless Ratchet/Impact Driver 6 in extension 1/4 in to 3/8 in adapter External Torx E10 Ratchet/torque wrench	Replace	1112138-00-C
Screws (x8) and the datums (x7) that attach the instrument panel carrier to the cross car beam	2.3 N.m (1.7 lbs-ft)	Cordless Ratchet/Impact Driver 2 in extension Torx T20 socket 4 in extension Ratchet/torque wrench	Reuse
