Interior Ducting And Vents - HVAC, Thermistor Duct - Remove And Replace: Remove

  1. Remove the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .

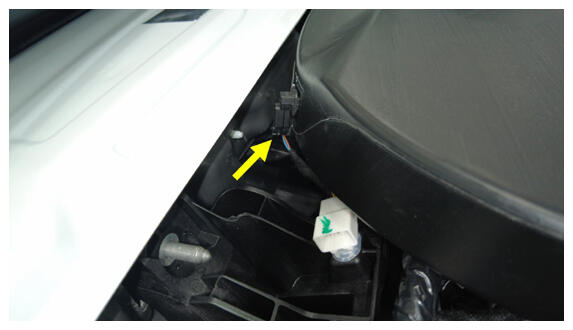

  2. Disconnect the thermistor connector from LH IP air wave duct.
    G16589542Courtesy of TESLA, INC.

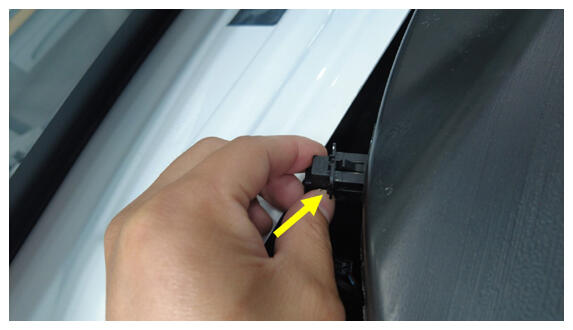

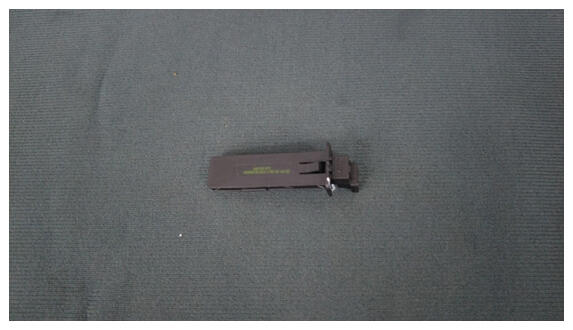

  3. Remove the thermistor duct from LH IP air wave duct.
    G16589543Courtesy of TESLA, INC.
    G16589544Courtesy of TESLA, INC.
