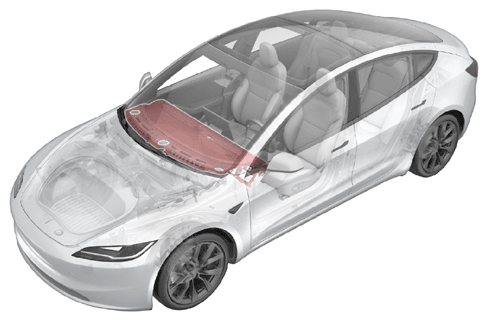

Instrument Panel - Instrument Panel - Dash Panel - Instrument Panel Upper Assembly - Remove And Replace: Notes

Last modified: 01/12/2023 01:45:30

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screw that attaches the LH front vent to the instrument panel carrier	2.3 N.m (1.7 lbs-ft)	Cordless Ratchet/Impact Driver 6 in extension Torx T20 socket Ratchet/torque wrench	Reuse
Bolts (x6) that securing passenger air bag to cross car beam	8 N.m (5.9 lbs-ft)	Cordless Ratchet/Impact Driver 6 in extension Torx T20 socket Ratchet/torque wrench	Replace
