Instrument Panel - Instrument Panel - Dash Panel - Instrument Panel Upper Assembly - Remove And Install: Remove

  1. Open both front doors and lower both front windows.
  2. Move the LH and RH front seats backward.
  3. Disconnect the LV battery power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
  4. Remove the LH and RH instrument panel end caps. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
  5. Remove the LH and RH upper A-pillar trims. See A - B - C POST INTERIOR TRIM - A - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
  6. Remove the passenger footwell cover. See DASH PANEL - PASSENGER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
  7. Remove the glove box. See DASH PANEL - GLOVE BOX WITH USB ASSEMBLY - REMOVE AND REPLACE .
  8. Remove the passenger footwell duct. See INTERIOR DUCTING AND VENTS - IP, PASSENGER FOOTWELL DUCT - REMOVE AND REPLACE .
  9. Remove the RH instrument panel air wave duct. See INTERIOR DUCTING AND VENTS - IP, AIR, WAVE, DUCT, RH - REMOVE AND REPLACE .
  10. Remove the driver footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
  11. Remove the instrument panel lower assembly. See DASH PANEL - IP LOWER, ASSEMBLY - REMOVE AND REPLACE .
  12. Remove the driver airbag assembly. See FRONT AIR BAGS - DRIVER AIRBAG ASSEMBLY - REMOVE AND REPLACE .
  13. Remove the steering wheel. See STEERING COLUMN AND WHEEL - STEERING WHEEL - PUR LEATHER - REMOVE AND REPLACE .
    NOTE: Mark the steering wheel to steering column before removing the steering wheel.
  14. Remove the touchscreen. See TOUCHSCREEN - CENTER DISPLAY ASSEMBLY - REMOVE AND REPLACE .
  15. Remove the instrument panel speaker grille. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - IP WRAPPED AROUND ASSEMBLY - REMOVE AND REPLACE .
  16. Remove the LH and RH instrument panel speakers. See INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - AUDIO SPEAKER FULL RANGE, LH - REMOVE AND REPLACE .
  17. Remove the center instrument panel speaker. See INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - AUDIO SPEAKER FULL RANGE 100 MM, CENTER - REMOVE AND REPLACE .

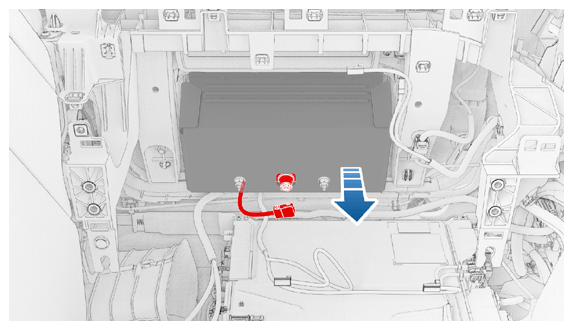

  18. Lift the white tab to disconnect the passenger air bag connector.
    G16589486Courtesy of TESLA, INC.

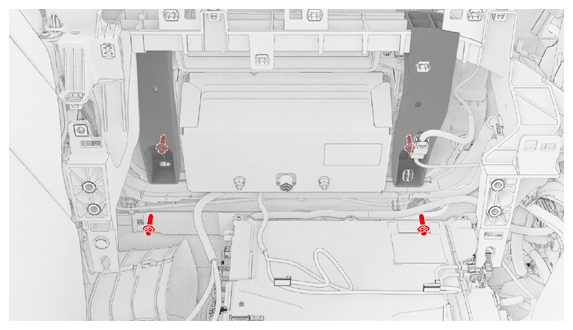

  19. Remove and discard the patch bolts (x2) that secure the instrument panel carrier to the cross car beam near the passenger airbag.

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 6 in extension
    • 1/4 in to 3/8 in adapter
    • External Torx E10
    • Ratchet/torque wrench
    G16589487Courtesy of TESLA, INC.

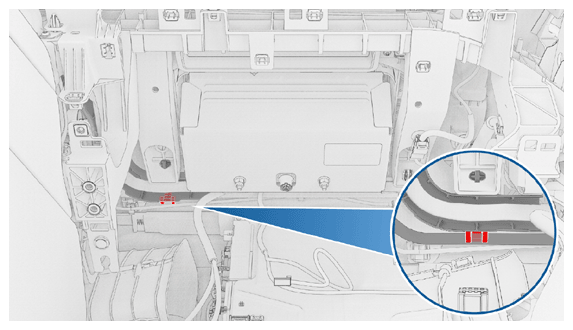

  20. Release the instrument panel harness from the cross car beam.
    G16589488Courtesy of TESLA, INC.

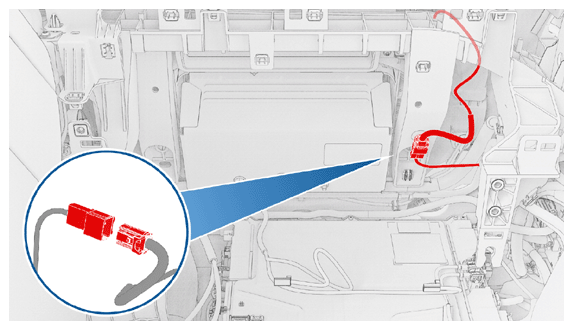

  21. Disconnect the instrument panel harness connector from the RH side of the panel.
    G16589489Courtesy of TESLA, INC.
  22. Remove the screws (x8) and the datums (x7) that attach the instrument panel carrier to the cross car beam.
    NOTE: There is 1 screw and 1 datum on the upper LH side, 3 screws and 2 datums on the lower LH side, 3 screws and 3 datums at the lower center, and 1 screw and 1 datum on the upper RH side.

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • 2 in extension
    • Torx T20 socket
    • 4 in extension
    • Ratchet/torque wrench

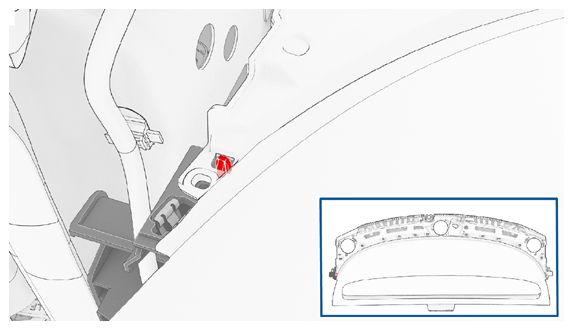

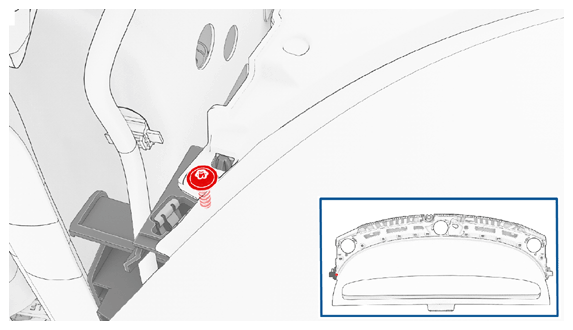

    NOTE: 1 screw and 1 datum on the upper LH side
    G16589490Courtesy of TESLA, INC.
    G16589491Courtesy of TESLA, INC.

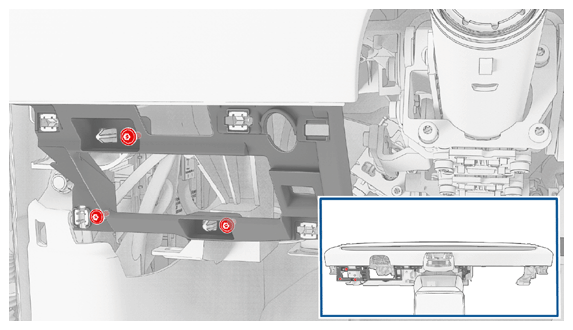

    NOTE: 3 screws and 2 datums on the lower LH side
    G16589492Courtesy of TESLA, INC.
    G16589493Courtesy of TESLA, INC.

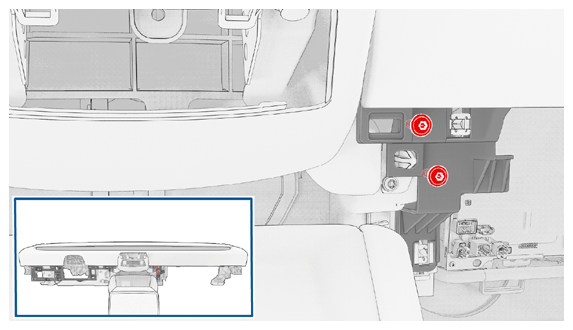

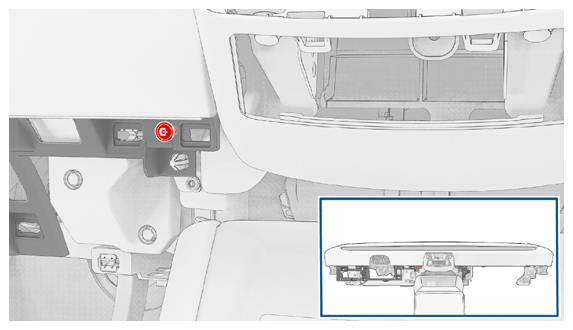

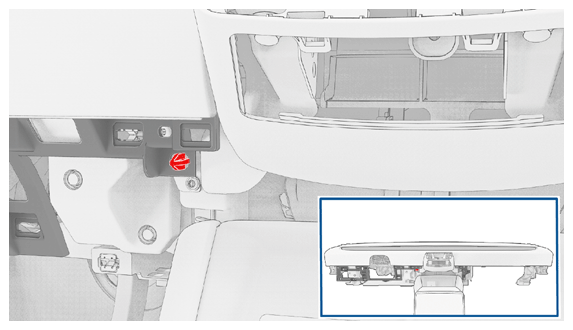

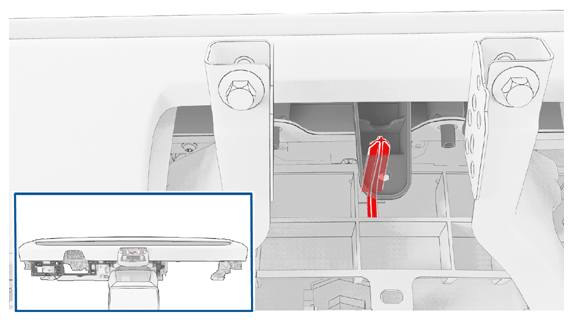

    NOTE: 3 screws and 3 datums at the lower center
    G16589494Courtesy of TESLA, INC.
    G16589495Courtesy of TESLA, INC.
    G16589496Courtesy of TESLA, INC.
    G16589497Courtesy of TESLA, INC.
    G16589498Courtesy of TESLA, INC.

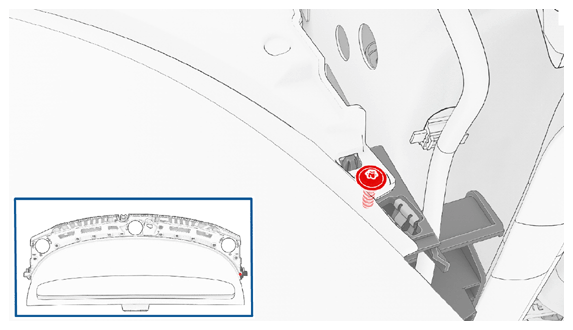

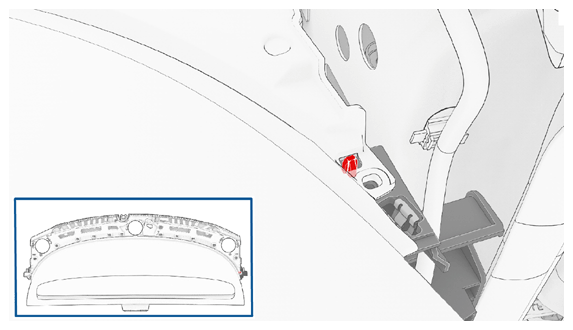

    NOTE: 1 screw and 1 datum on the upper RH side
    G16589499Courtesy of TESLA, INC.
    G16589500Courtesy of TESLA, INC.

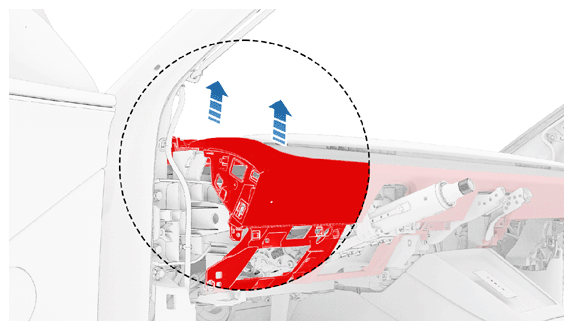

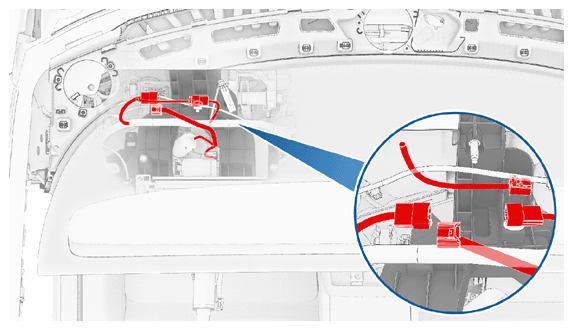

  23. Disconnect the instrument panel harness connector from the LH side of the panel.
    NOTE: Gently pull out the instrument panel and lift it to facilitate disconnecting the connector.
    G16589501Courtesy of TESLA, INC.
    G16589502Courtesy of TESLA, INC.

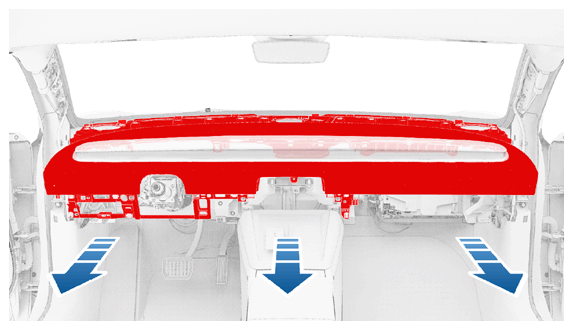

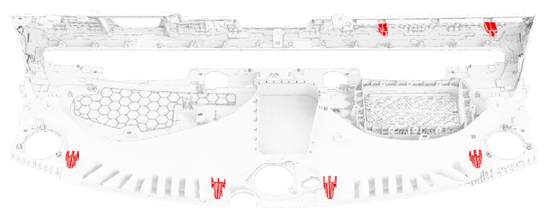

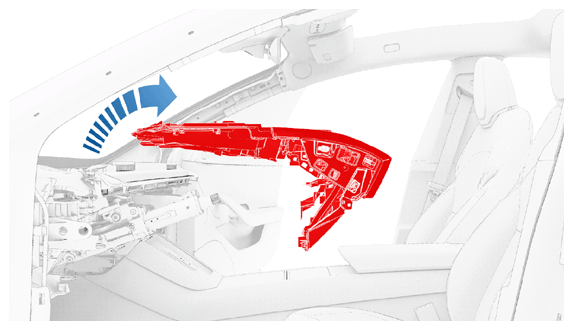

  24. With assistance, release guide tabs (x4) and tabs (x2) to remove the instrument panel carrier from the vehicle.
    G16589503Courtesy of TESLA, INC.
    G16589504Courtesy of TESLA, INC.
    G16589505Courtesy of TESLA, INC.
