Dash Panel - Shroud, Upper - Remove And Replace: Remove

  1. Remove the steering wheel. See STEERING COLUMN AND WHEEL - STEERING WHEEL - PUR LEATHER - REMOVE AND REPLACE .

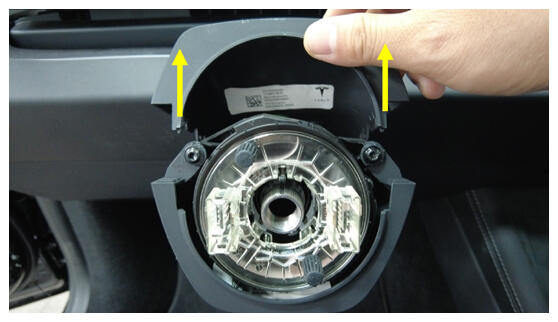

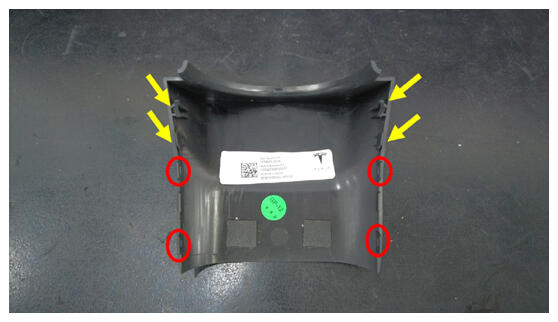

  2. Use the plastic trim tool to release the clips that attach the steering column upper shroud to the lower shroud, and then pull the upper shroud up.
    G16589396Courtesy of TESLA, INC.
    G16589397Courtesy of TESLA, INC.
