Dash Panel - Shroud, Lower - Remove And Replace: Remove
- Remove the upper shroud of steering column. See DASH PANEL - SHROUD, UPPER - REMOVE AND REPLACE .

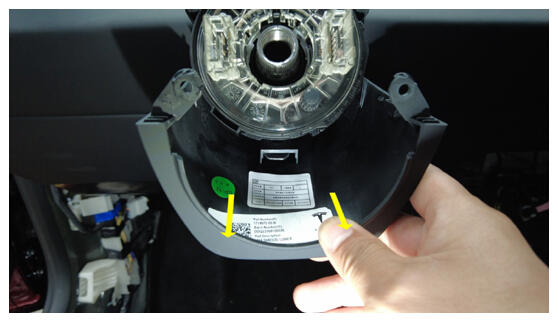

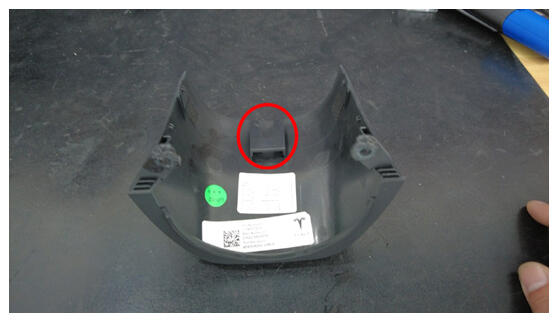

- Remove the lower screws (x2) that attaches the steering column lower shroud to the steering column, and then remove the lower shroud from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- Torx T20 socket
