Dash Panel - Shroud, Lower - Remove And Replace: Install

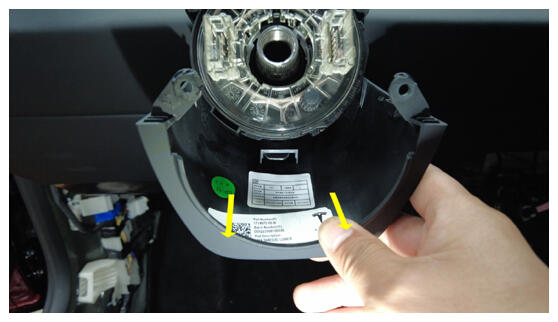

- Slide the lower shroud onto the steering column, make sure the locator slot is engaged.
- Install the lower screws (x2) that attaches the steering column lower shroud to the steering column, and then install the lower shroud from the vehicle.
1.5 N.m (1.1 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- Torx T20 socket
- Install the upper shroud of steering column. See DASH PANEL - SHROUD, UPPER - REMOVE AND REPLACE .
