Dash Panel - Passenger Footwell Cover Assembly - Remove And Replace: Remove
- Open the RH front door and lower the RH front window.
- Move the RH front seat backward.

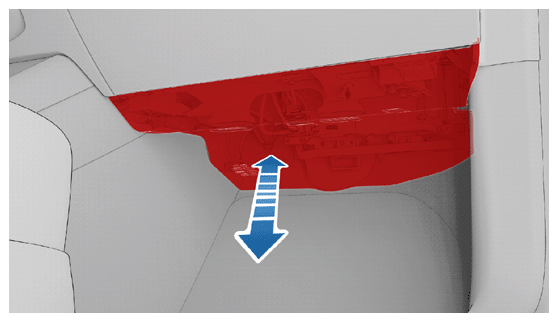

- Release the passenger footwell cover from the vehicle.
- For APAC and EMEA vehicles: Release the clips that attach the passenger footwell cover to the vehicle.
- For NA vehicles: Release the magnets (x2) that attach the passenger footwell cover to the vehicle.

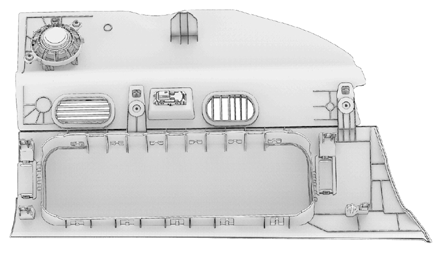

NOTE:Passenger Footwell Cover on APAC and EMEA Vehicles

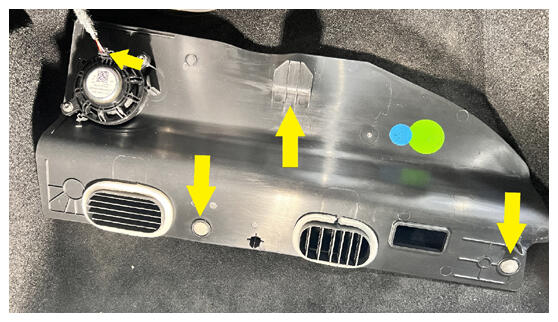

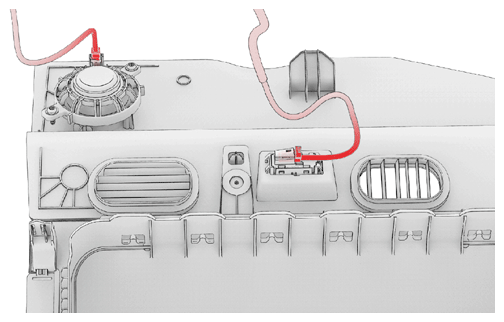

NOTE: Passenger Footwell Cover on NA Vehicles - Disconnect the electrical connector from the puddle light, and then remove the footwell cover from the vehicle.
