Dash Panel - Passenger Footwell Cover Assembly - Remove And Replace: Install

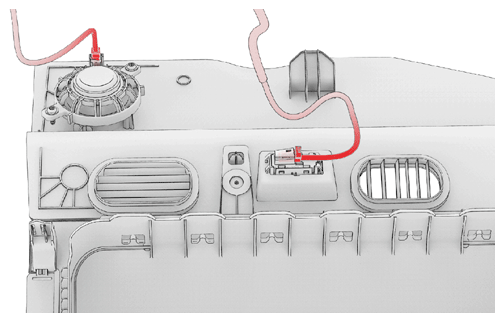

Connect the electrical connector to the puddle light, and then install the footwell cover to the vehicle.

Courtesy of TESLA, INC.

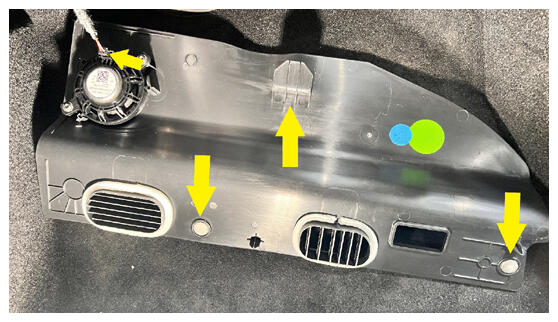

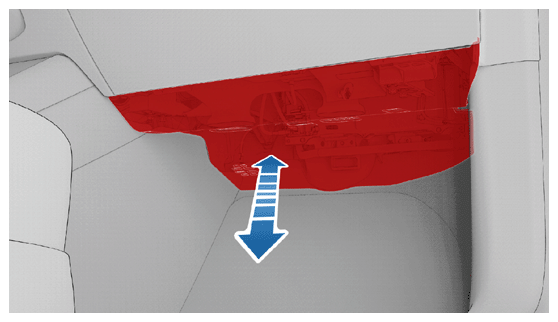

Install the passenger footwell cover to the vehicle.
- For APAC and EMEA vehicles: Secure the clips that attach the passenger footwell cover to the vehicle.
- For NA vehicles: Secure the magnets (x2) that attach the passenger footwell cover to the vehicle.
NOTE: Passenger Footwell Cover on APAC and EMEA Vehicles

Courtesy of TESLA, INC.

NOTE: Passenger Footwell Cover on NA Vehicles

Courtesy of TESLA, INC.
Move the RH front seat to original position.
Raise the RH front window and close the RH front door.
