Dash Panel - NVH Pad, Upper - Remove And Replace: Remove

  1. Remove the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .

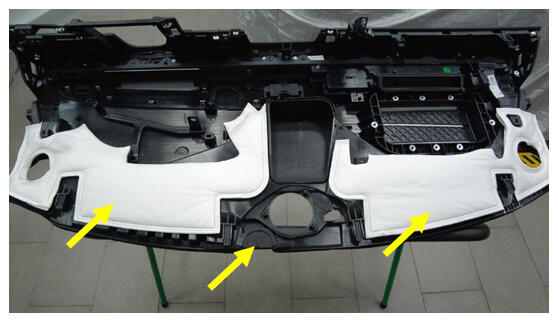

  2. Peel the instrument panel NVH pad from the instrument panel carrier.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16589379Courtesy of TESLA, INC.
