Dash Panel - NVH Pad, Upper - Remove And Replace: Install

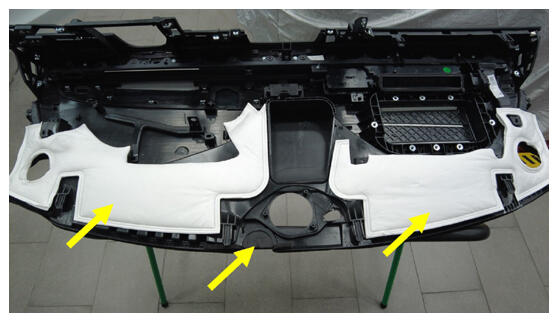

  1. Install the instrument panel NVH pad from the instrument panel carrier.
    G16589380Courtesy of TESLA, INC.
  2. Install the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .
