Dash Panel - IP Lower, Assembly - Remove And Replace: Install

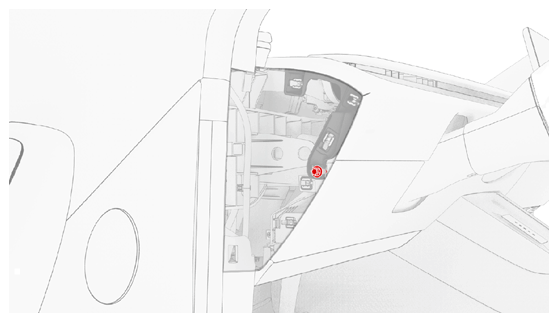

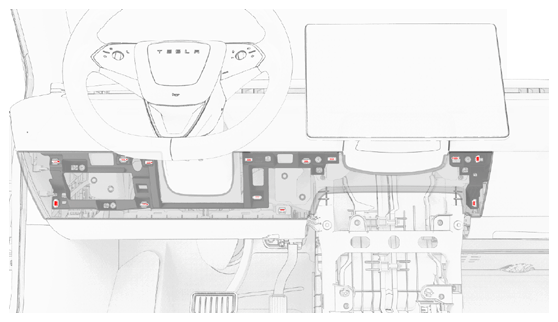

Install the screw and fasten the tabs (x13) that attach the lower instrument panel to the instrument panel, and then install the panel to the vehicle.
2.3 N.m (1.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- Torx T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .

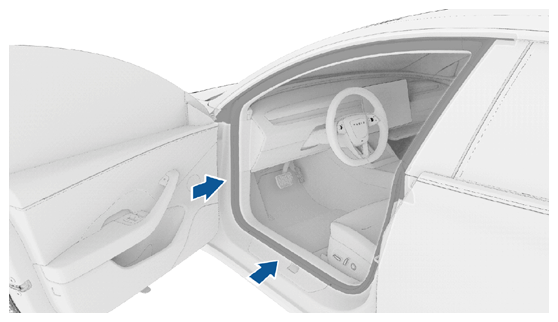

Install the LH front primary door seal.

Courtesy of TESLA, INC.
Install the LH footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE
Raise the LH front window and close the LH front door.
