Dash Panel - Glove Box with USB Assembly - Remove And Replace: Install

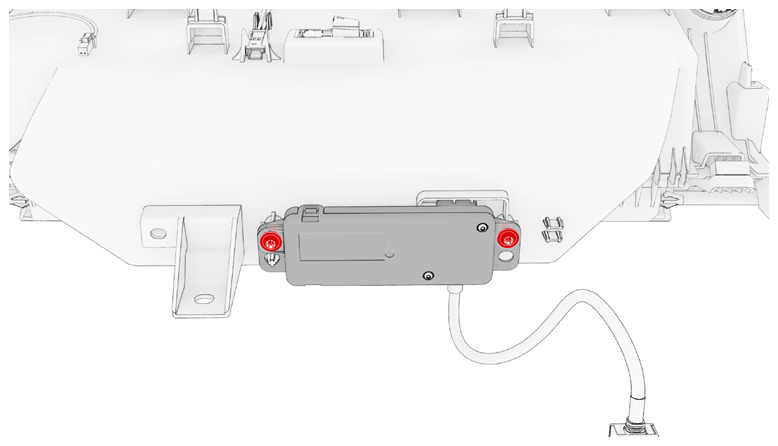

Install the bolts (x2) that attach the glove box USB cable to the glove box.
1.5 N.m (1.1 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 2 in extension
- Cordless Ratchet/Impact Driver
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

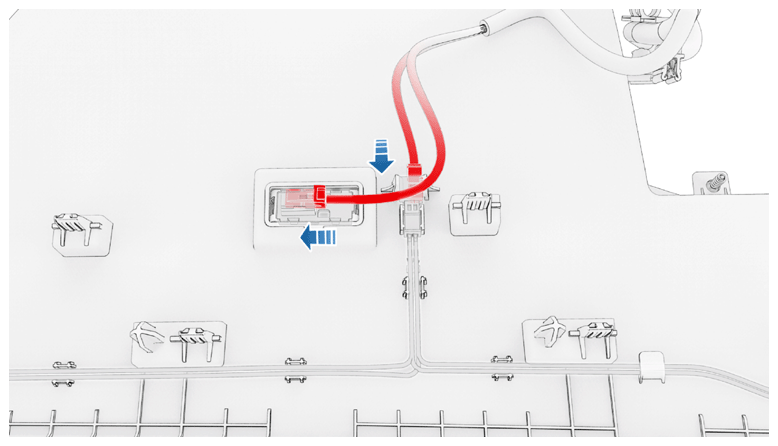

Connect the electrical connectors (x2) to the glove box.

Courtesy of TESLA, INC.

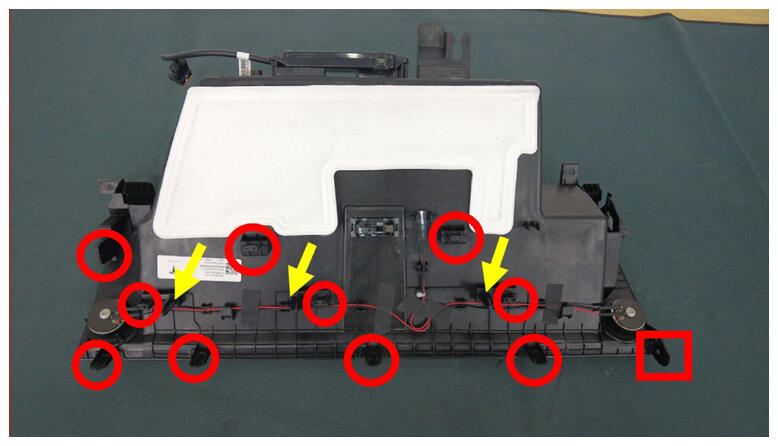

Secure the clips (x10), locator pins (x3) and datum that attach the glove box to the instrument panel carrier.

Courtesy of TESLA, INC.

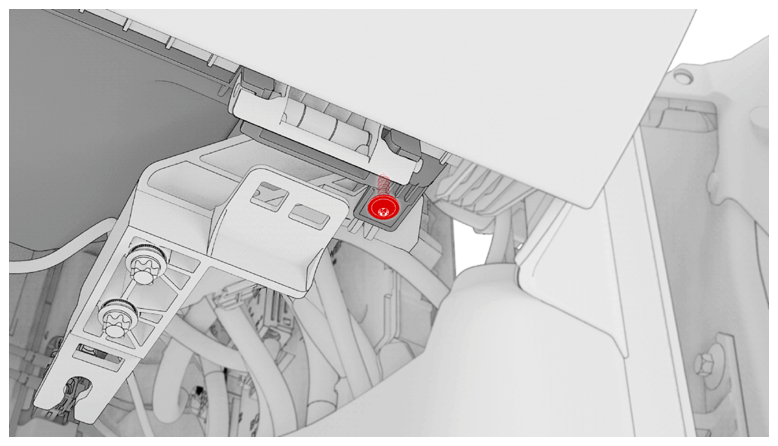

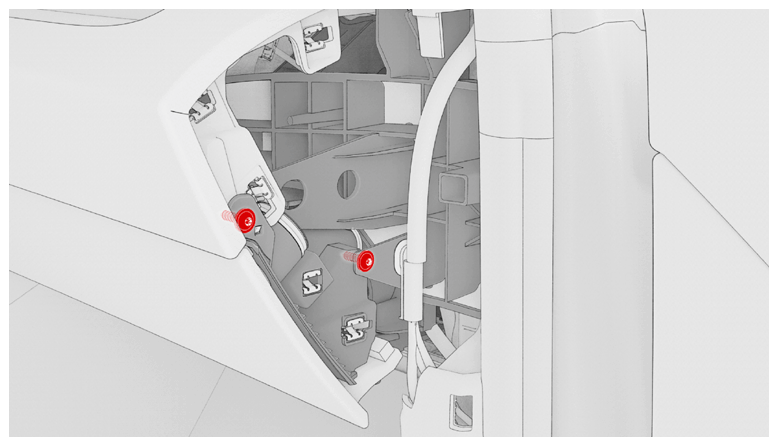

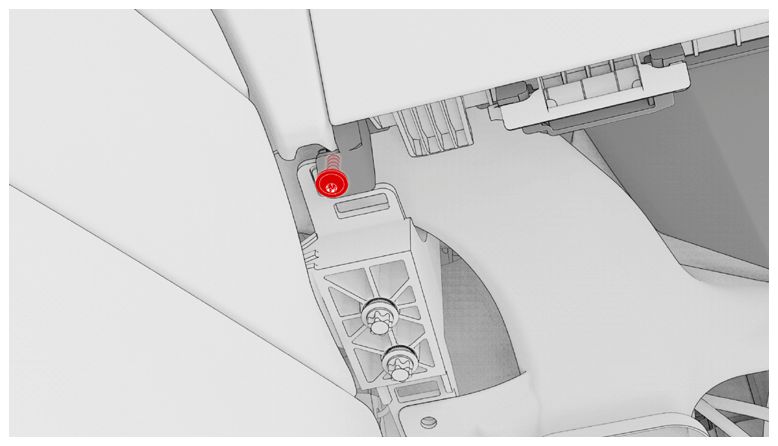

Install the screws (x4) that attach the glove box to the instrument panel carrier.
2.3 N.m (1.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 2 in extension
- Cordless Ratchet/Impact Driver
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

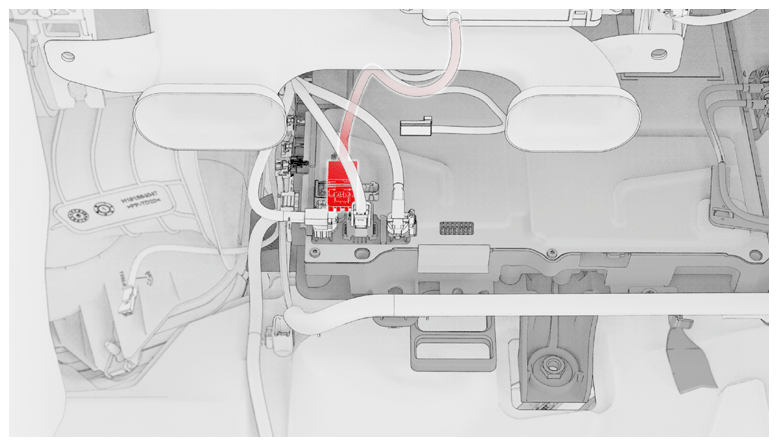

Connect the glove box USB connector to the car computer.

Courtesy of TESLA, INC.

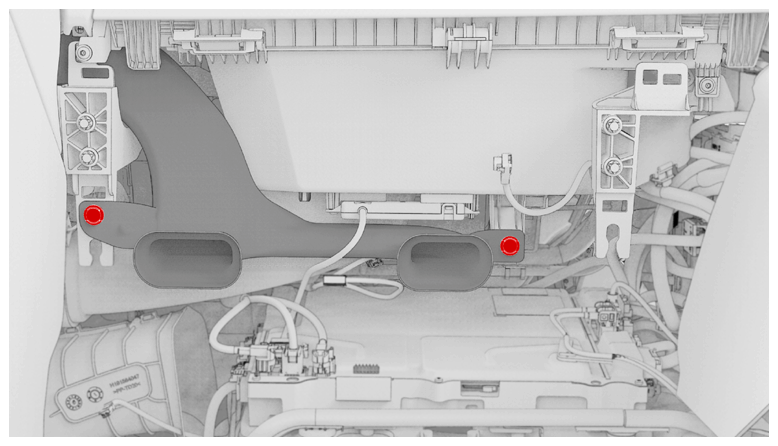

Fasten the tree clips (x2) that attach the passenger footwell duct to the instrument panel.

Courtesy of TESLA, INC.
For NA vehicles only: Install the front passenger knee airbag. See FRONT AIR BAGS - KNEE AIR BAG, RH - REMOVE AND REPLACE .
Install the RH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
Install the passenger footwell cover. See DASH PANEL - PASSENGER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
Connect the LV battery power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
