Dash Panel - Driver Footwell Cover Assembly - Remove And Replace: Remove

Open the LH front door and lower the LH front window.
Move the LH front seat backward.
Release the driver footwell cover from the vehicle.
- For APAC and EMEA vehicles: Release the clips that attach the driver footwell cover to the vehicle.
- For NA vehicles: Release the magnets (x2) that attach the driver footwell cover to the vehicle.

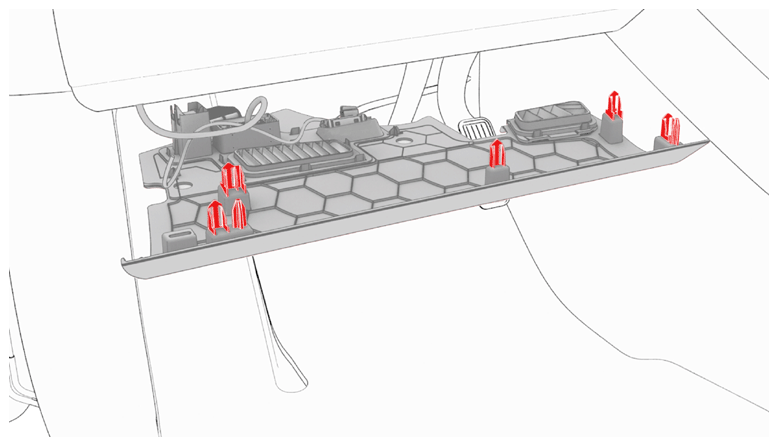

NOTE: Driver Footwell Cover on APAC and EMEA Vehicles

Courtesy of TESLA, INC.

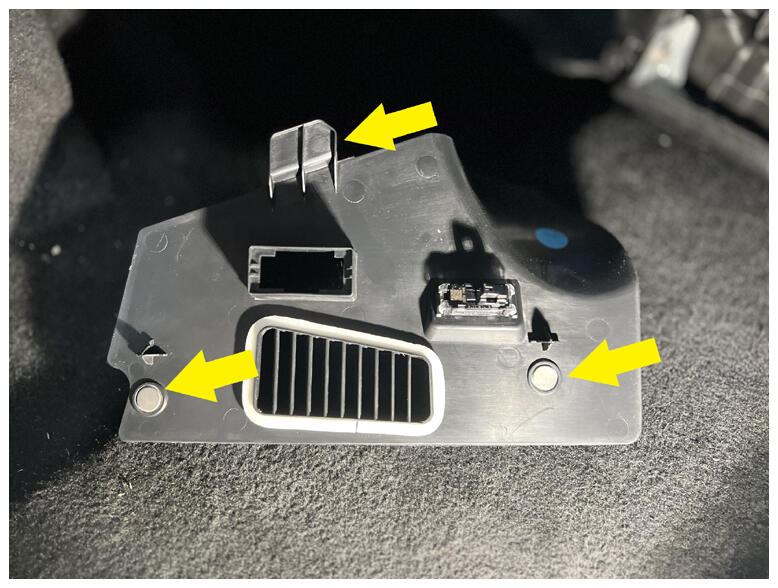

NOTE: Driver Footwell Cover on NA Vehicles

Courtesy of TESLA, INC.

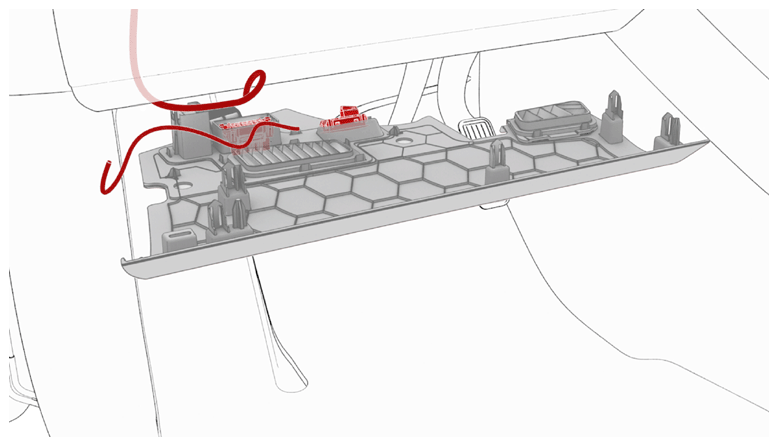

Disconnect the electrical connector from the puddle light, and then disconnect the diagnostic cable from the driver footwell cover.

Courtesy of TESLA, INC.

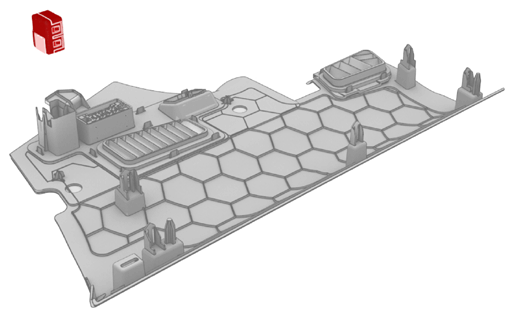

APAC vehicles only: Remove Ethernet connector from the driver footwell cover.

Courtesy of TESLA, INC.
