Dash Panel - Driver Footwell Cover Assembly - Remove And Replace: Install

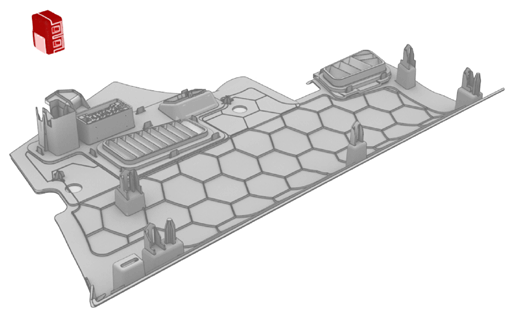

APAC vehicles only: Install Ethernet connector to the driver footwell cover.

Courtesy of TESLA, INC.

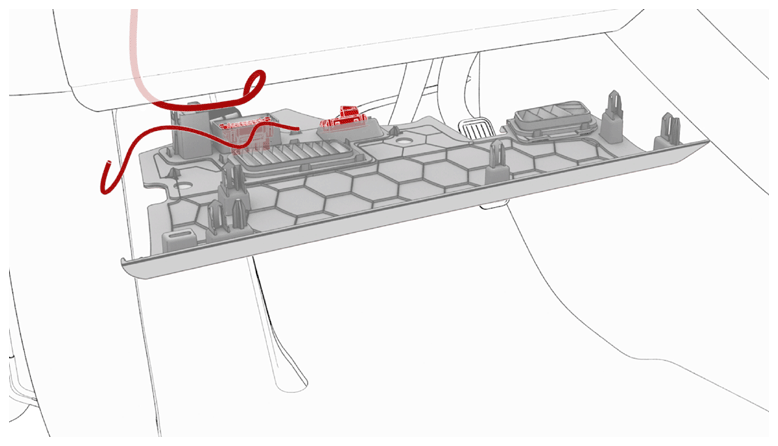

Connect the electrical connector to the puddle light, and then connect the diagnostic cable to the driver footwell cover.

Courtesy of TESLA, INC.
Install the driver footwell cover to the vehicle.
- For APAC and EMEA vehicles: Secure the clips that attach the driver footwell cover to the vehicle.
- For NA vehicles: Secure the magnets (x2) that attach the driver footwell cover to the vehicle.

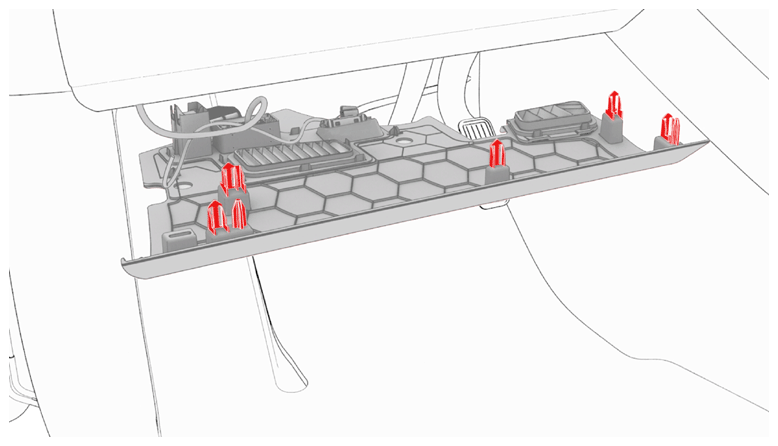

NOTE: Driver Footwell Cover on APAC and EMEA Vehicles

Courtesy of TESLA, INC.

NOTE: Driver Footwell Cover on NA Vehicles

Courtesy of TESLA, INC.
Move the LH front seat to original position.
Raise the LH front window and close the LH front door.
