Car Computer - Etisalat Sim Card - Remove And Replace: Remove
- Open all doors and lower all windows.
- Move the front seats forward.
- Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Disconnect LV power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
- Remove the LH side rail trim. See A - B - C POST INTERIOR TRIM - SIDE RAIL ASSEMBLY, LH - REMOVE AND REPLACE .

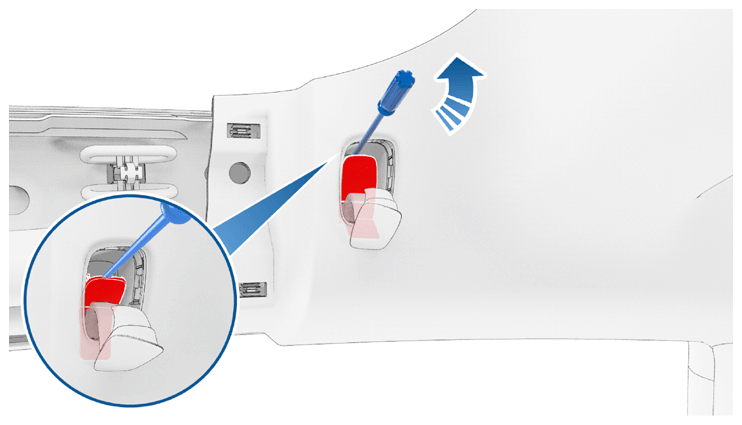

- Use a small flat head screwdriver to pry open the LH rear coat hook screw cover.

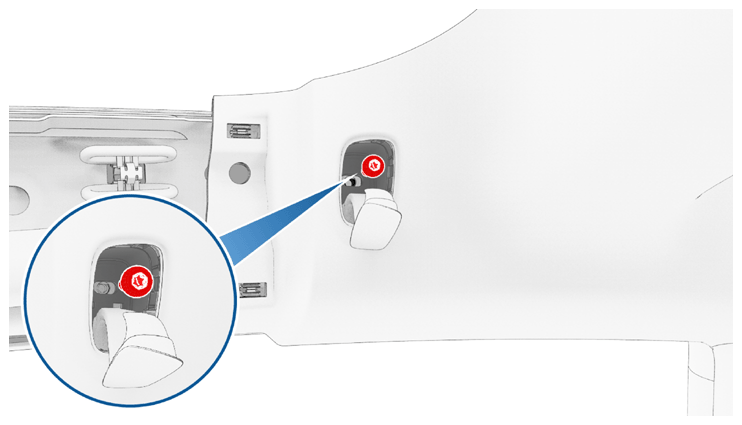

- Remove the screw that attaches the LH rear coat hook to the body.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T25 socket
- Ratchet/torque wrench
NOTE: LH shown, RH similar - Repeat step 5 through step 7 on the RH side of the vehicle.

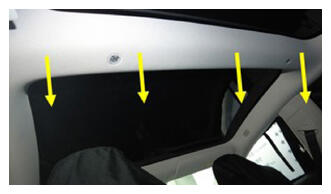

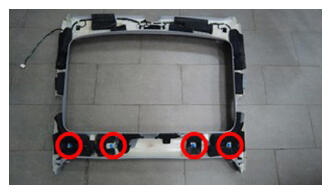

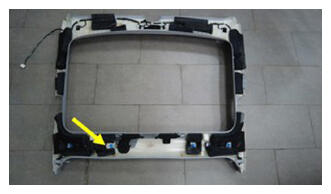

- Release the clips (x4) and locator pin that attach the rear of the headliner to the vehicle.WARNING: Take care not to damage the headliner.WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.multimedia:A supplement to the article is available.

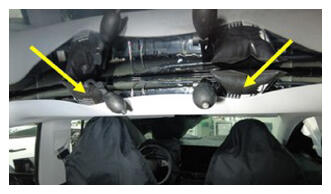

- Insert inflatable air bags, and then inflate the air bags to gain access to the working area.WARNING: Take care not to damage the headliner.

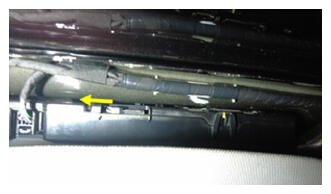

- Slide the retaining tab of the telematics control unit (TCU) SIM card to the left, and then remove the SIM card.

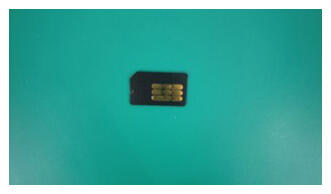

- Destroy the SIM card by cutting the card in half through the center, and then cut each piece into half, resulting in 4 pieces.CAUTION: It is mandatory to destroy the SIM card to protect user data.
