Antennas and Amplifiers - Tuner FM/HD/DAB - Remove And Replace: Notes

Last modified: 12/03/2024 12:26:25

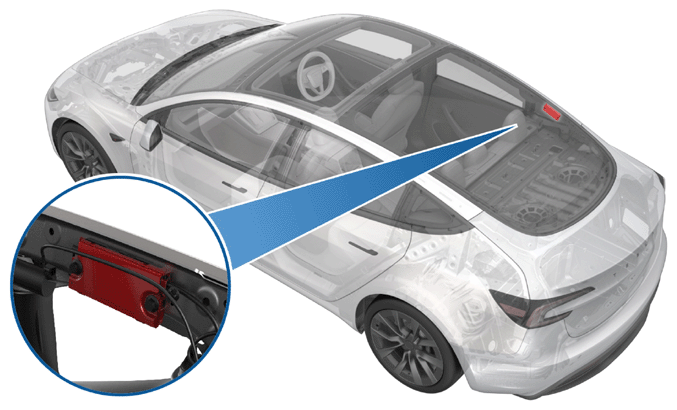

Fig 1: Tuner FM/HD/DAB Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

2024-02-19: Changed ODIN routine for testing tuner connections.
2024-01-11: Added a warning to double confirm the tuner connector will not pinch the tether during installation.
2024-01-10: Updated the torque value from 10 N.m to 8 N.m.

TORQUE SPECIFICATIONS - ANTENNAS AND AMPLIFIERS - TUNER FM/HD/DAB (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x2) that attach the tuner to the body	8 N.m (5.9 lbs-ft)	10 mm deep socket 4 in extension Ratchet/torque wrench Cordless Ratchet/Impact Driver Clip pry tool	Reuse
