RHD Electrical - Wipers and Washer - Windshield Wipers and Motor - Wiper Module - Remove And Replace: Remove

  1. Open the RH front door and lower the RH front window.
  2. Remove the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
  3. Remove the fresh air gutter assembly. See CABIN HVAC - HVAC, FRESH AIR GUTTER, ASSEMBLY - REMOVE AND REPLACE .
  4. Remove the wiper arms. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WIPERS AND MOTOR - WIPER ARM DR - REMOVE AND REPLACE .
  5. Remove the cowl screen panel. See Underhood Trim - Assembly, Cowl Screen, LHD - Remove And Replace .
  6. Remove the bolts (x3) that attach the wiper module to the body, and then move it aside.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Cordless Ratchet/Impact Driver
    • 10 mm socket
    • Ratchet/torque wrench
    G16596509Courtesy of TESLA, INC.

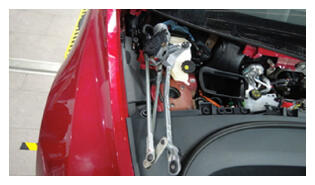

    G16596510Courtesy of TESLA, INC.
  7. Disconnect the wiper module connector.
    NOTE: Do not place the limbs within the linkage movement area as the wiper arms will automatically transition to parking mode.
    G16596511Courtesy of TESLA, INC.
  8. Remove the wiper module from the vehicle.
    G16596512Courtesy of TESLA, INC.
