Infotainment - Audio System - Speakers, Subwoofer and Amplifier - Audio Speakers - Audio Speaker Full Range, LH - Remove And Replace: Install

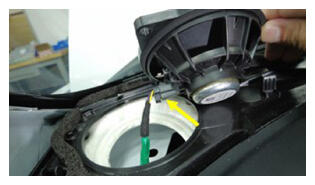

Connect the electrical connector to the LH dash speaker connector.

Courtesy of TESLA, INC.

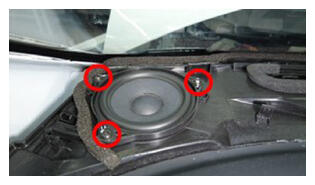

Install the screws (x3) that attach the LH dash speaker to the instrument panel.
2.3 N.m (1.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
- Ratchet/torque wrench
Courtesy of TESLA, INC.
Install the instrument panel speaker grille. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - IP WRAPPED AROUND ASSEMBLY - REMOVE AND REPLACE .
NOTE: No need to run the TEST-SELF_VCLEFT_RGB⁽ⁱ⁾ via Toolbox.
Install the LH and RH upper A-Pillar trims. See A - B - C POST INTERIOR TRIM - A - PILLAR UPPER ASSEMBLY, LH - REMOVE AND REPLACE .
Install the LH and RH instrument panel end caps. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
