Electrical - Horn - Audio, Speaker, Super Horn - Remove And Replace: Remove
- Remove the RH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .

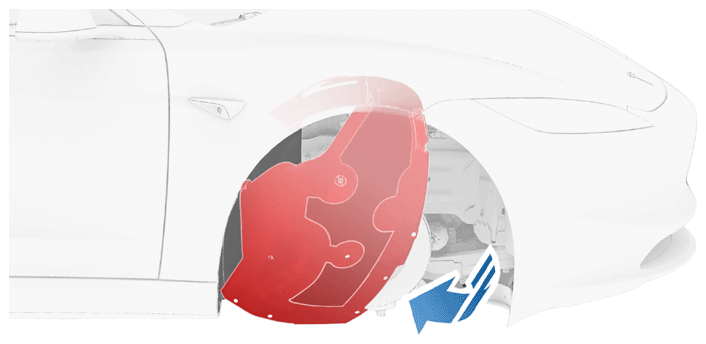

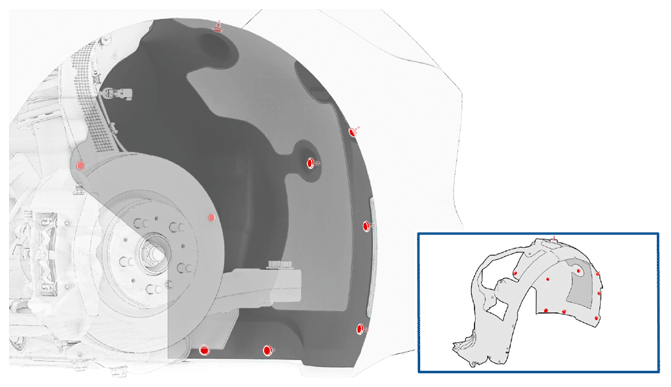

- Release the push clips (x9) that attach the RH front wheel arch liner to the vehicle, and then partially remove the RH front wheel arch liner.

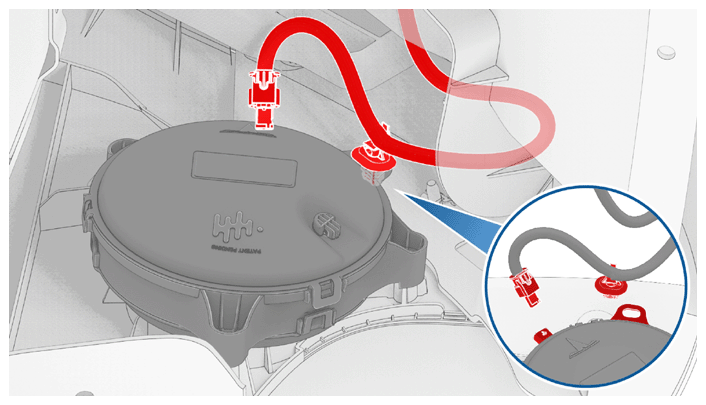

- Release the clip that attaches the pedestrian warning harness to the speaker, and then disconnect the pedestrian warning connector.

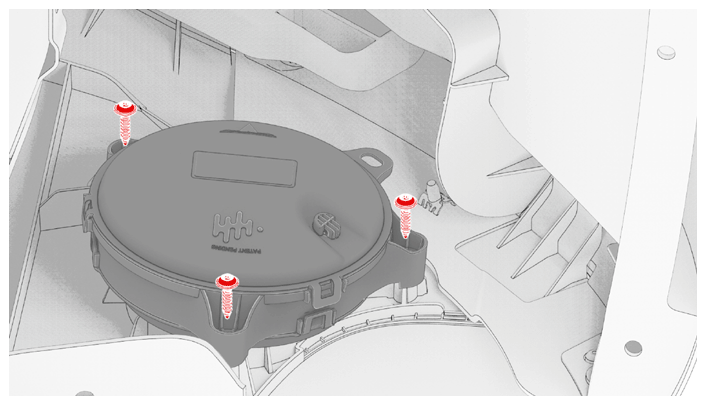

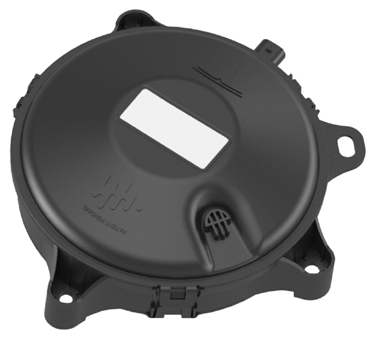

- Remove the screws (x3) that attach the pedestrian warning speaker to the valance, and then remove the speaker from the valance.
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
