Electrical - Horn - Audio, Speaker, Super Horn - Remove And Replace: Install

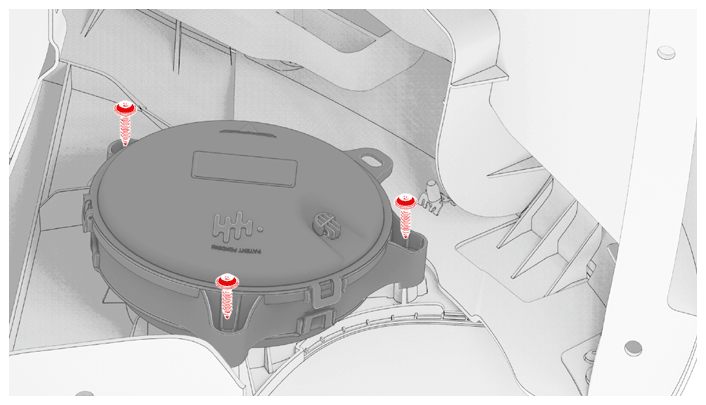

- Install the pedestrian warning speaker to the valance, and then install the screws (x3) that attach the pedestrian warning speaker to the valance.
1.8 N.m (1.3 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- Torx T25 socket
- Flex head ratchet/flex head torque wrench

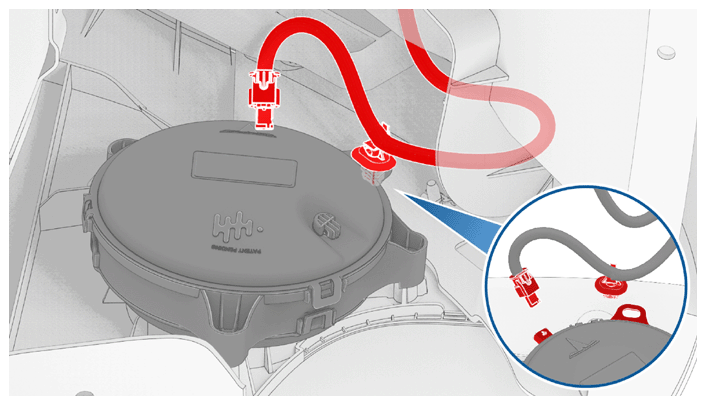

- Connect the pedestrian warning connector, and then install the clip that attaches the pedestrian warning harness to the speaker.

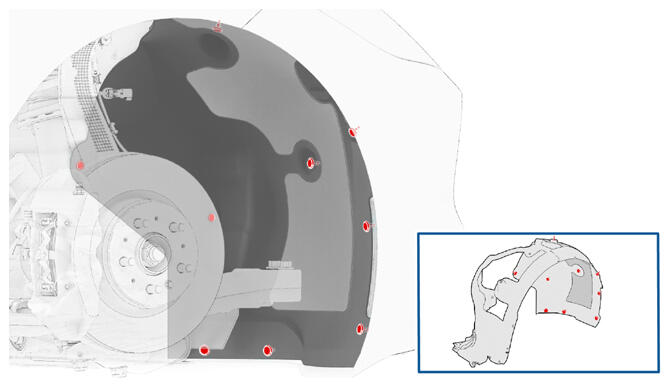

- Install the RH front wheel arch liner back to the vehicle, and then install the push clips (x9) that attach the RH front wheel arch liner to the vehicle.
- Install the RH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
