Antennas and Amplifiers - Milkweed GNSS Antenna Assembly - Remove And Replace: Remove
- Remove the lower camera cover. See REARVIEW MIRROR - REAR VIEW MIRRROR, CAM LOWER COVER - REMOVE AND REPLACE .
- Remove the rear view mirror. See REARVIEW MIRROR - REAR VIEW MIRROR, ASSEMBLY - REMOVE AND REPLACE .
- Remove the upper camera cover. See REARVIEW MIRROR - REAR VIEW MIRROR, CAM COVER UPPER - REMOVE AND REPLACE
.NOTE: No need to remove the interior camera from the upper camera cover.

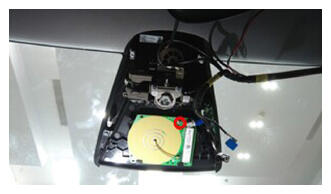

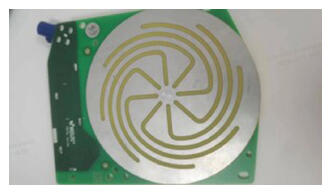

- Remove the screw and tabs (x2) that attaches the GNSS antenna to the vehicle, and then slide the antenna to the LH side to remove it from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
