Antennas and Amplifiers - Milkweed GNSS Antenna Assembly - Remove And Replace: Install

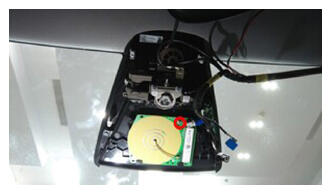

- Install the screw and tabs (x2) that attaches the GNSS antenna to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- Install the upper camera cover. See REARVIEW MIRROR - REAR VIEW MIRROR, CAM COVER UPPER - REMOVE AND REPLACE
.NOTE: No need to install the interior camera to the upper camera cover.
- Install the rear view mirror. See REARVIEW MIRROR - REAR VIEW MIRROR, ASSEMBLY - REMOVE AND REPLACE .
- Install the lower camera cover. See REARVIEW MIRROR - REAR VIEW MIRRROR, CAM LOWER COVER - REMOVE AND REPLACE .
