Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Pump Grommet - Remove And Replace: Remove

  1. Remove the windshield washer pump. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WASHER BOTTLE AND PUMP - WASHER PUMP - REMOVE AND REPLACE .
  2. Remove the washer pump grommet from the windshield washer reservoir.

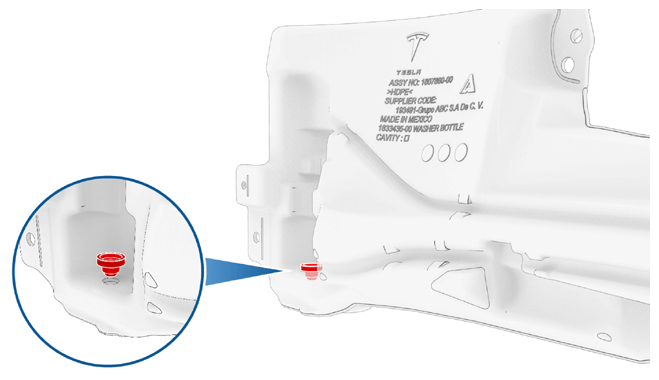

    G16596497Courtesy of TESLA, INC.
    G16596498Courtesy of TESLA, INC.
