Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Pump Grommet - Remove And Replace: Install

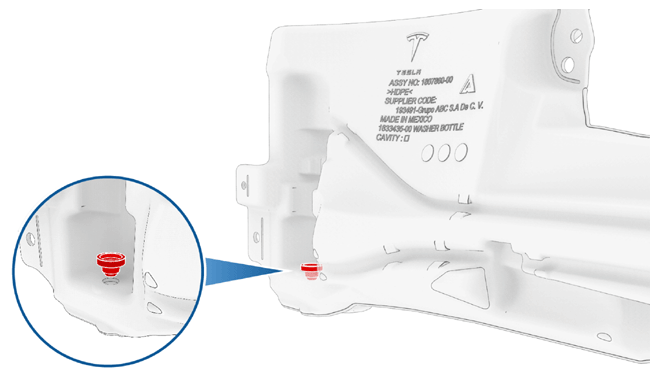

  1. Install the washer pump grommet to the windshield washer reservoir.
    NOTE: Inspect the grommet for damage before installation.
    G16596499Courtesy of TESLA, INC.
  2. Install the windshield washer pump. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WASHER BOTTLE AND PUMP - WASHER PUMP - REMOVE AND REPLACE .
