Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Pump - Remove And Replace: Install

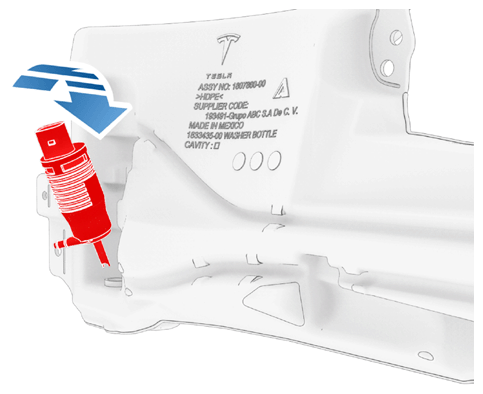

- Install the windshield washer pump to the washer reservoir.NOTE: Ensure the washer pump is aligned with the positioning slot.

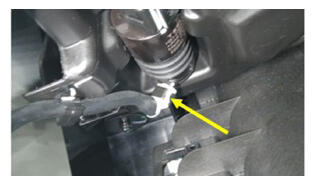

- Fasten the clip that attaches the windshield washer hose to the washer pump.

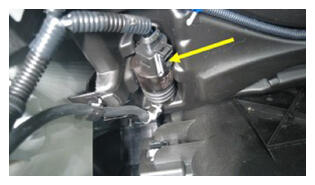

- Connect the windshield washer pump connector.
- Install the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
- Fill the windshield washer reservoir with fluid.
- Close the washer reservoir cap.
- Verify operation of the windshield wipers and washer.
