Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Bottle - Remove And Replace: Install

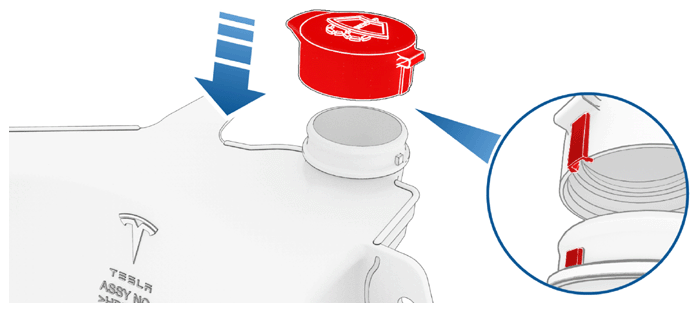

Align the locating slot on the cap with the locating tab on the reservoir, and then fully seat the cap onto the reservoir.

Courtesy of TESLA, INC.

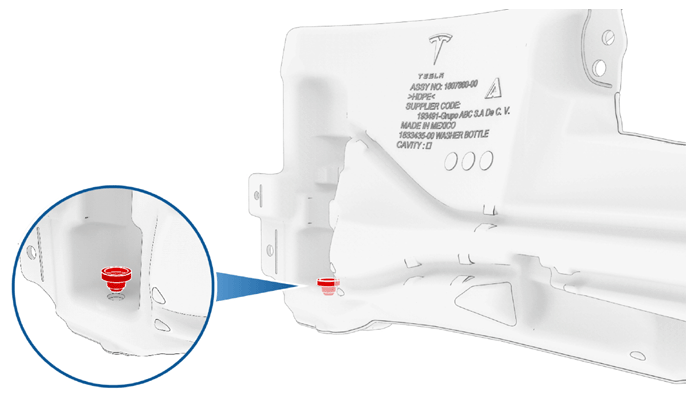

Install the grommet into the windshield washer reservoir.
NOTE: Inspect the grommet for damage before installation.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

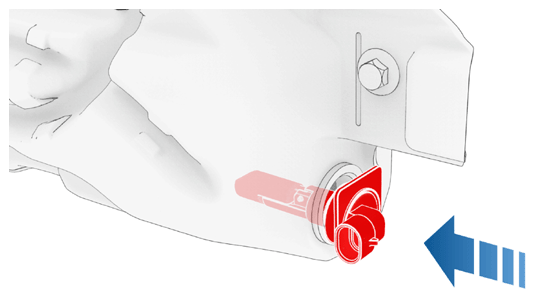

Install the windshield washer level sensor so that the flat edge of the sensor housing is facing upwards and the sensor connector is facing directly to the rear.

Courtesy of TESLA, INC.

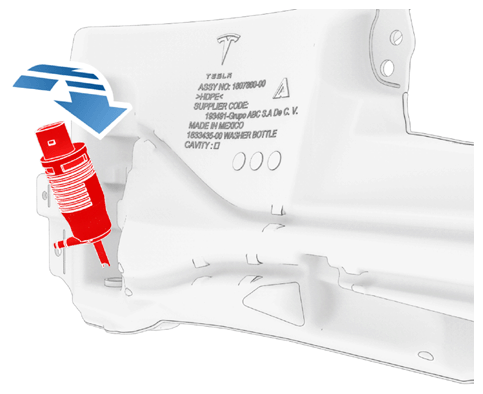

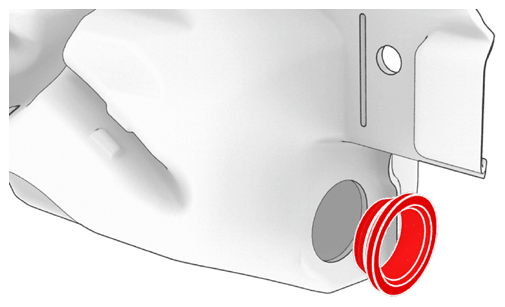

Install the windshield washer pump and pump grommet to the washer reservoir.
NOTE: Ensure the washer pump is aligned with the positioning slot.

NOTE: Inspect the grommet for damage before installation.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the windshield washer reservoir assembly. See ELECTRICAL - WIPERS AND WASHERS - WINDSHIELD WASHER BOTTLE AND PUMP - WASHER BOTTLE ASSEMBLY - REMOVE AND REPLACE .
