Infotainment - Audio System - Speakers, Subwoofer and Amplifier - Audio Speakers - Pedestrian Warning Speaker - Remove And Replace: Remove

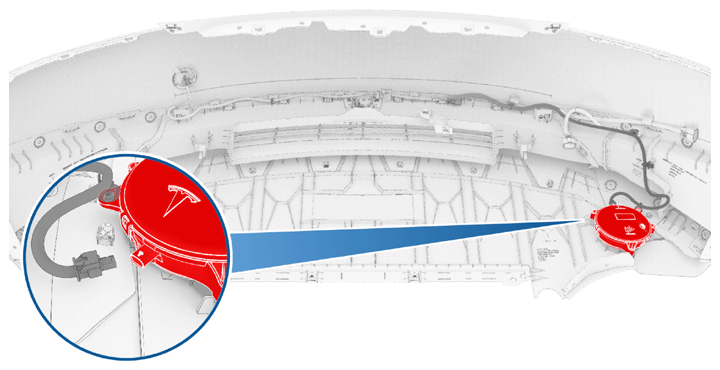

Remove the rear fascia. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
Disconnect the electrical connector from the pedestrian warning speaker.
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

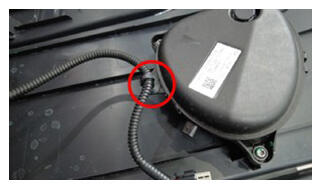

Remove the clip that attaches the harness to the pedestrian warning speaker.

Courtesy of TESLA, INC.

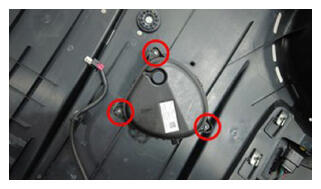

Remove the screws (x3) that attach the pedestrian warning speaker to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 2 in extension
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.

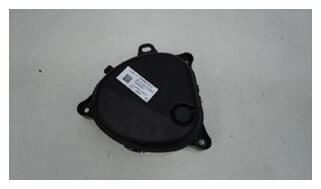

Remove the pedestrian warning speaker.

Courtesy of TESLA, INC.
