Infotainment - Audio System - Speakers, Subwoofer and Amplifier - Audio Speakers - Pedestrian Warning Speaker - Remove And Replace: Notes

Last modified: 08/11/2023 22:58:28

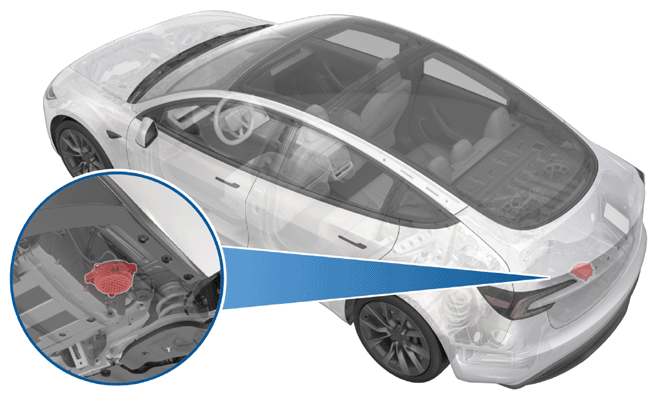

Fig 1: Pedestrian Warning Speaker Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - PEDESTRIAN WARNING SPEAKER (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Screws (x3) that attach the pedestrian warning speaker to the vehicle	1.8 N.m (1.3 lbs-ft)	Torx T25 socket 2 in extension Cordless Ratchet/Impact Driver Ratchet/torque wrench	Reuse
