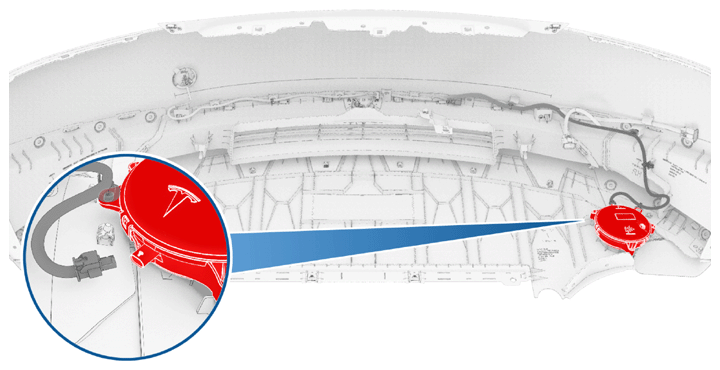

Infotainment - Audio System - Speakers, Subwoofer and Amplifier - Audio Speakers - Pedestrian Warning Speaker - Remove And Replace: Install

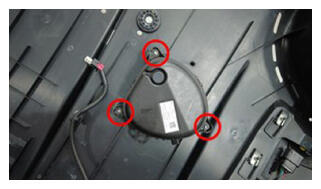

- Install the screws (x3) that attach the pedestrian warning speaker to the vehicle.
1.8 N.m (1.3 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 2 in extension
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench

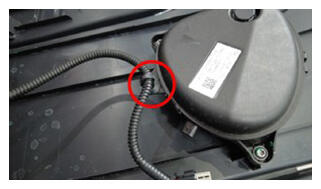

- Install the clip that attaches the harness to the pedestrian warning speaker.
- Connect the electrical connector to the pedestrian warning speaker.
- Install the rear fascia. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
