Electrical - Cameras - Side Repeater Camera - Side Repeater Camera, LH - Remove And Replace: Remove
- Remove the LH front side repeater assembly. See FRONT LIGHTS - ASSEMBLY, SIDE REPEATER LH - REMOVE AND REPLACE .

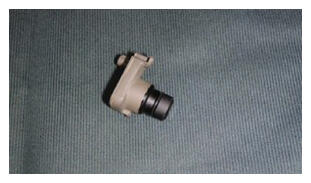

- Remove the bolts (x2) that attach the LH front side repeater camera to the side repeater assembly, and then remove the camera from the repeater assembly.NOTE: Remove the bolts and wiggle the camera to clear the o-ring from the side repeater assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T8 bit
- Ratchet/torque wrench
