Tail Lights - Lamp Assembly, Rear Fascia Lamp, LH - Remove And Replace: Install

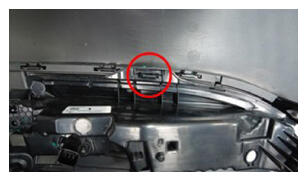

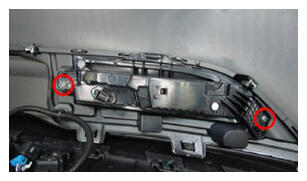

Install the bolts (x2) and clip that attach the LH rear fascia lamp to the rear fascia.
2.5 N.m (1.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- Torx T25 socket
- Torque Wrench Hexagon - 1060071-00-A (for installation only)
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

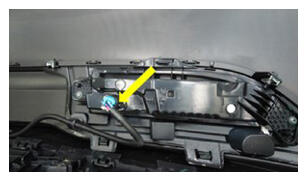

Connect the LH rear fascia lamp connector.

Courtesy of TESLA, INC.

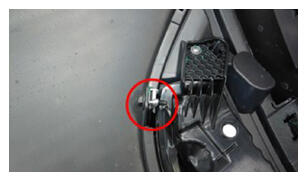

Install the bolt that attaches the rear upper fascia to the rear fascia.
3 N.m (2.2 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 10 mm socket
Courtesy of TESLA, INC.
Install the rear fascia. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
Locally connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
Click the Actions tab, type "TEST-SELF_VCRIGHT_REAR_FASCIA-LIGHTS" into the search field, click⁽ⁱ⁾ , click Run , and allow the routine to complete.
Disconnect the laptop from the vehicle.
Remove the lift arms from below the vehicle.
