Reflex Assembly - Electrical - Exterior Lights - Tail Lights - RH - Remove And Replace: Remove

  1. Remove the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
  2. Remove the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE
  3. Remove the RH load floor bracket. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .
  4. Remove the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .

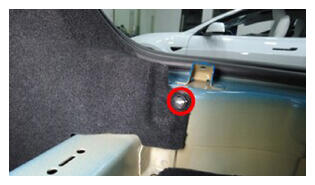

  5. Use a pry tool to remove the clip that attaches the RH trunk side trim to the vehicle.
    G16596332Courtesy of TESLA, INC.

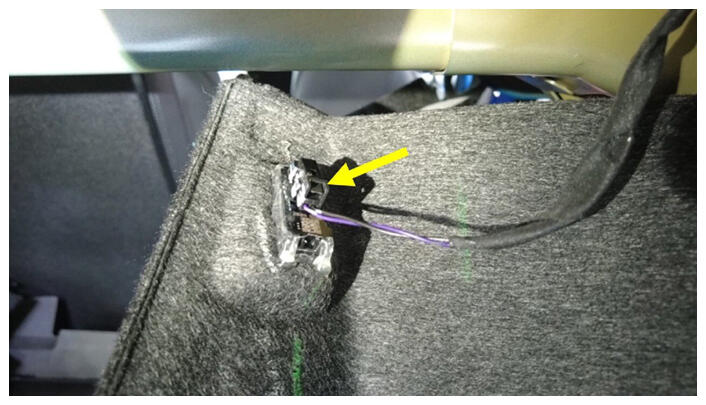

  6. Disconnect the RH trunk task light connector.
    G16596333Courtesy of TESLA, INC.

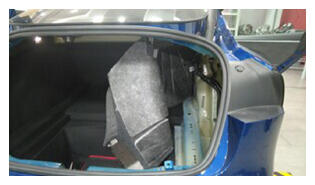

  7. Fold the RH trunk side trim aside to provide access to the working area.
    G16596334Courtesy of TESLA, INC.

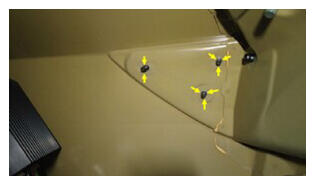

  8. Hold the reflector on the outside with one hand while using a pry bar or a small flat head screwdriver to release the tabs (x3) and push the reflector outwards with the other hand, and then remove the reflector from the vehicle.
    G16596335Courtesy of TESLA, INC.

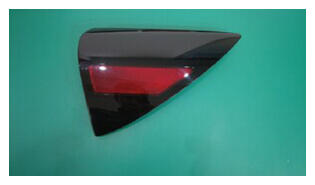

    G16596336Courtesy of TESLA, INC.
