Reflex Assembly - Electrical - Exterior Lights - Tail Lights - RH - Remove And Replace: Install

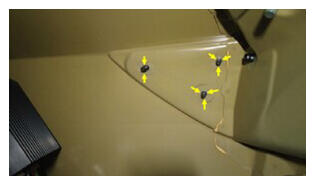

  1. Install the clips (x3) that attach the reflector to the vehicle.
    NOTE: Make sure clips are fully seated.
    G16596337Courtesy of TESLA, INC.
  2. Use the gap and flush tool to check the gap and flush of the reflector to the vehicle.
  3. Move the RH trunk side trim back to its original position.

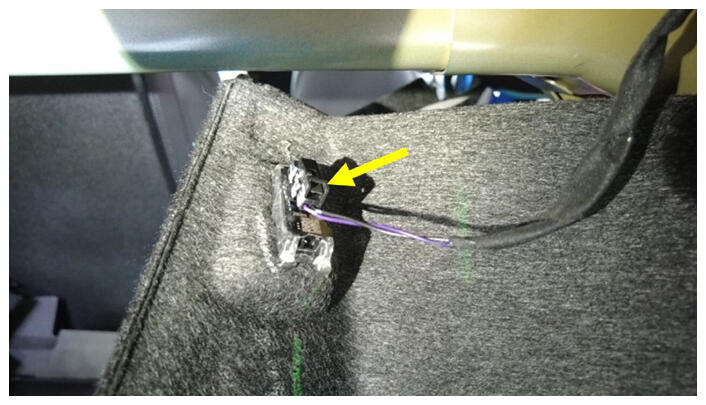

  4. Connect the RH trunk task light connector.
    G16596338Courtesy of TESLA, INC.

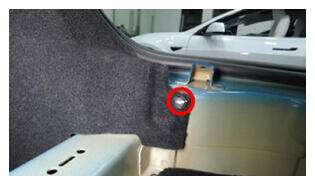

  5. Install the clip that attaches the RH trunk side trim to the vehicle.
    G16596339Courtesy of TESLA, INC.
  6. Install the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .
  7. Install the RH load floor bracket. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .
  8. Install the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE
  9. Install the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
