Audio Speakers - Audio, Speaker, Full Range, 200 Mm - Remove And Replace: Notes

Last modified: 17/10/2023 18:55:04

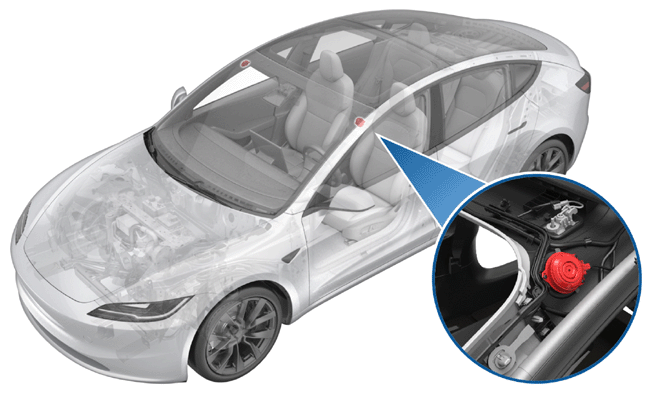

Fig 1: Headliner Speaker Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Last modified: 22/11/2023 23:48:20

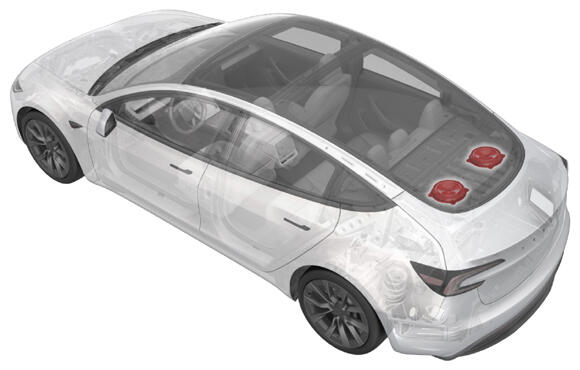

Fig 1: Parcel Shelf Woofer Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

TORQUE SPECIFICATIONS - AUDIO SPEAKERS - AUDIO, SPEAKER, FULL RANGE, 200MM (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x4) that secure the LH woofer	4 N.m (2.9 lbs-ft)	10 mm socket Cordless Ratchet/Impact Driver Ratchet/torque wrench	Reuse
