Electrical - B-Pillar Camera - Far Field Side Camera, LH - Remove And Replace: Install

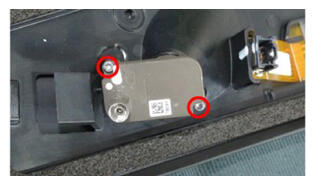

Position the LH B-pillar camera on the LH B-pillar applique, and then install the bolts (x2) that attach the camera to the B-pillar applique.
0.6 N.m (5 lbs-in)

NOTE: Wiggle the camera o-ring through the B-pillar applique, and then install the bolts that attach the camera to the B-pillar applique.

Tip: Use of the following tool(s) is recommended:
- Torx T8 bit
- Ratchet/torque wrench
Courtesy of TESLA, INC.
Install the LH B-pillar applique. See EXTERIOR TRIM FITTINGS - LHD - ASSEMBLY B-PILLAR APPLIQUE LH - REMOVE AND REPLACE .
