Electrical - Cameras - Side Repeater Camera - Side Repeater Camera, LH - Remove And Replace: Notes

Last modified: 22/11/2023 00:22:01

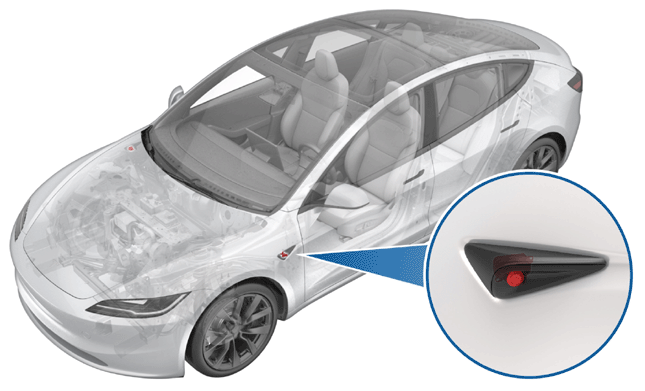

Fig 1: Side Repeater Camera Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

1773595-00-A RJ45 ETHERNET CABLE
1930388-00-A OBD II TO RJ45 NETWORK PORT

WARNING: Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration .
