Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Pump - Remove And Replace: Remove

Remove the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
Open the washer reservoir cap.
Place a fluid evacuator near the front of the vehicle and connect it with a compressed air.
Open the evacuator valve and position the evacuator hose into a corner of the washer reservoir, and then evacuate as much as washer as possible.
Disconnect the compressed air and remove the fluid evacuator.

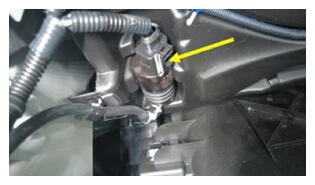

Disconnect the windshield washer pump connector.

Courtesy of TESLA, INC.
Release the clip that attaches the windshield washer hose to the washer pump.

Courtesy of TESLA, INC.
Remove the windshield washer pump from the windshield washer reservoir.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Inspect the grommet for damage and replace as necessary.
NOTE: The new washer pump does not come with a new grommet.
