Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Bottle Assembly - Remove And Replace: Remove

Remove the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
Open the washer reservoir cap.
Place a fluid evacuator near the front of the vehicle and connect it with a compressed air.
Open the evacuator valve and position the evacuator hose into a corner of the washer reservoir, and then evacuate as much as washer as possible.
Disconnect the compressed air and remove the fluid evacuator.

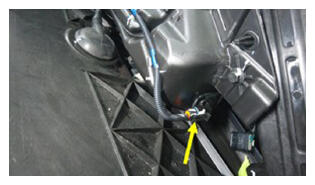

Disconnect the windshield washer level sensor connector.

Courtesy of TESLA, INC.

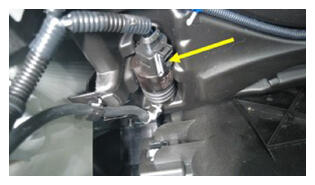

Disconnect the windshield washer pump connector.

Courtesy of TESLA, INC.

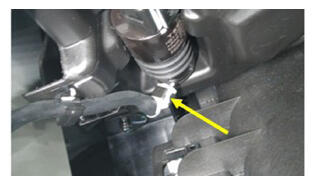

Release the clip that attaches the windshield washer hose to the washer pump.

Courtesy of TESLA, INC.

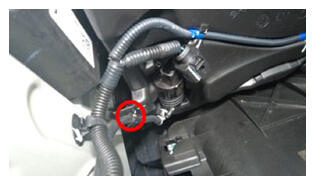

Release the clip that attaches the windshield washer hose to the washer reservoir.

Courtesy of TESLA, INC.

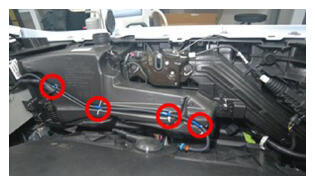

Release the clips (x4) that attach the electrical harness to the windshield washer reservoir.

Courtesy of TESLA, INC.

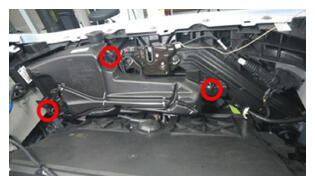

Remove the bolts (x3) that attach the windshield washer reservoir to the body.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.

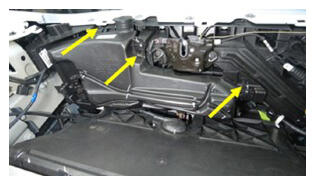

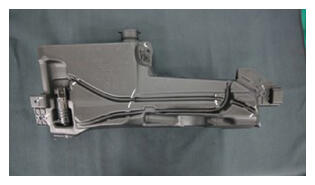

Release the locator pins (x3), and remove the windshield washer reservoir from the vehicle, and then recover any fluid from the reservoir.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
