Electrical - Wipers and Washers - Windshield Washer Bottle and Pump - Washer Bottle Assembly - Remove And Replace: Install

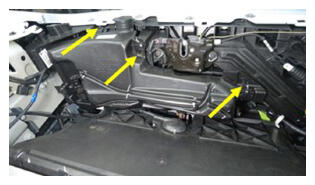

Install the windshield washer reservoir to the body.

Courtesy of TESLA, INC.

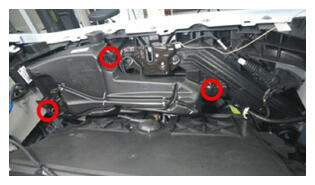

Install the bolts (x3) that attach the windshield washer reservoir to the body.
4 N.m (2.9 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.

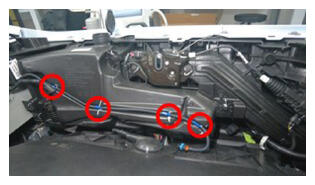

Fasten the clips (x4) that attach the electrical harness to the windshield washer reservoir.

Courtesy of TESLA, INC.

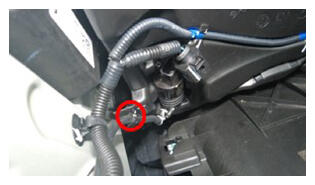

Fasten the clip that attaches the windshield washer hose to the washer reservoir.

Courtesy of TESLA, INC.

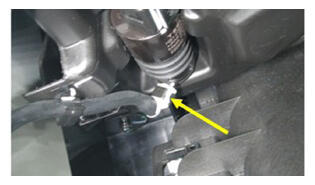

Fasten the clip that attaches the windshield washer hose to the washer pump.

Courtesy of TESLA, INC.

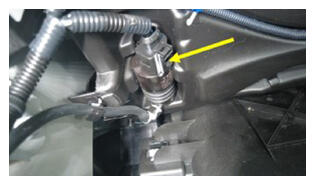

Connect the windshield washer pump connector.

Courtesy of TESLA, INC.

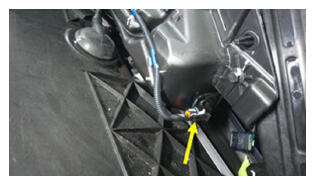

Connect the windshield washer level sensor connector.

Courtesy of TESLA, INC.
Install the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
Fill the windshield washer reservoir with fluid.
Close the washer reservoir cap.
Verify operation of the windshield wipers and washer.
