Connector End View - X981M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1042613-00-A
Connector SUMITOMO 6098-5594
Color WH

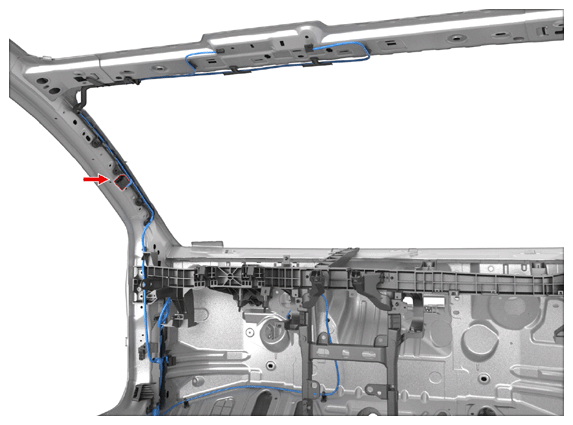

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | GN | 0.50 | X936F | 11 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X936F | 7 | ||
| 6 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X936F | 8 | ||
| 7 | unused | ||||||||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE/GN | 0.35 | X030A | 6 | ||
| 9 | unused | ||||||||
| 10 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.50 | X936F | 18 | ||
| 11 | SUMITOMO | 8230-4925 | 1.5x0.6M | GY | 0.50 | X936F | 23 | ||
| 12 | unused | ||||||||
| 13 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD | 0.35 | X030A | 26 | ||
| 14 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X936F | 21 | ||
| 15 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X936F | 20 | ||
| 16 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X039 | 9 | ||
| 17 | unused | ||||||||
| 18 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN | 0.50 | X936F | 4 | ||
