Connector End View - X949F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1055819-00-A

Connector MOLEX 33472-1206

Color BK

Connector Location:

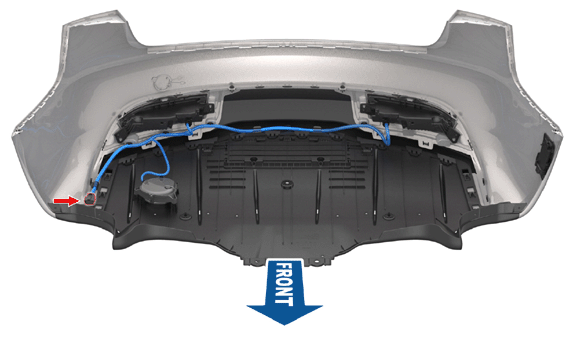

Fig 1: Connector Component Location - X949F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X949F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X264	2
2	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X264	3
3	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X264	4
4	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X265	6
5	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X265	2
6	MOLEX	33012-3004	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X604	2
7	MOLEX	33012-3004	1.5x0.8F	BK	0.50	TESLA	MAT-120-240	X264	8
8	unused
9	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X265	3
10	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X265	1
11	MOLEX	33012-3004	1.5x0.8F	BK	0.50	TESLA	MAT-120-240	X265	8
12	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X604	1
