Connector End View - X885F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1815043-02-A

Connector  AMP 2289729-3

Color  BU

Connector Location:

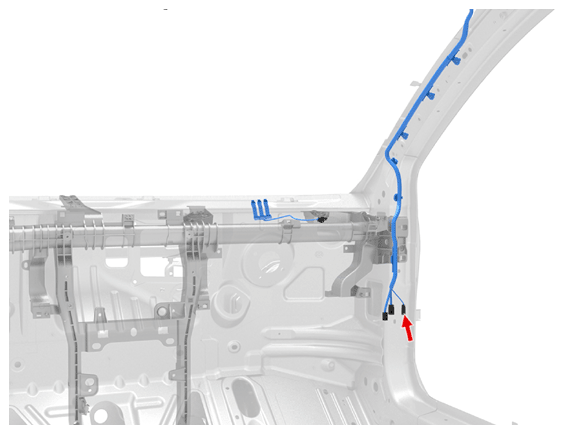

Fig 1: Connector Component Location - X885F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

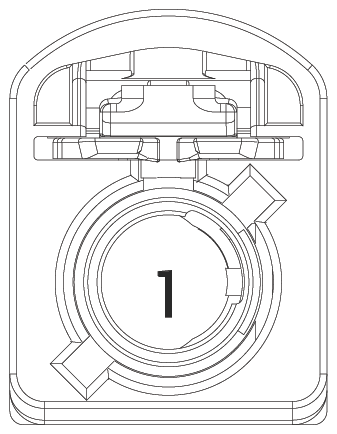

Fig 2: Connector End View - X885F (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
