Connector End View - X876M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1606839-03-A

Connector ROSENBERGER 99S16D-1D5A5-D

Color BO

Connector Location:

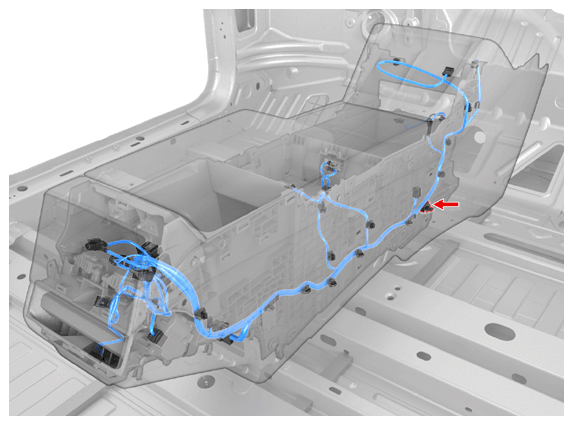

Fig 1: Connector Component Location - X876M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X876M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
H	TESLA	PIA-HSD-TERM		BK	Q1020	X857	H
1	AMP	5-963716-1	0.63x0.63M	RD	0.50	X857	1
2	AMP	5-963716-1	0.63x0.63M	BN	0.50	X857	2
